Temperature measurement of Molten Metal Stream during Auto Pour
Online Thermal Imaging Camera provides condition based monitoring in real time
![](https://www.manglamelectricals.com/wp-content/uploads/2024/02/Picture4-2.jpg)
Challenges
Molten Metal Stream is moving and therefore continuous measurement with Pyrometer is not possible.
Harsh ambient condition with presence of heat, splash, and dust making it challenging for regular temperature sensors
![](https://www.manglamelectricals.com/wp-content/uploads/2024/02/Picture5-1.jpg)
Solution

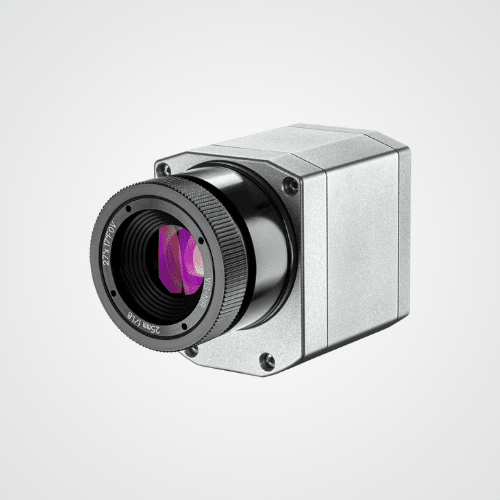

IR Thermal Imaging Camera provides online continuous temperature data in real time.
Temperature value of every poured die is recorded is recorded to high accuracy even in harsh ambient conditions
Products and Accessories
- Wide measurement range from 900 °C to 2450 °C without sub-ranges.
- Ideal for almost all NIR and CO2 laser processing applications due to spectral response at 540 nm
- Special wavelength range of 500-540 nm minimizes errors due to uncertainty of emissivity
- High dynamic CMOS detector with up to 764 x 480 pixels resolution
- Up to 1 kHz frame rate for fast processes
- Real-time analog output with 1 ms response time with Auto Hot Spot detection.
- Extensive software package and SDK included
Case Study Number
- TP3
Challenge
- The increasing flexibility of production lines requires a high adaptability of sensors. Continually changing object geometries, different temperatures and very high radiation or surrounding temperatures are no rarity.
- In a pilger mill those rough conditions can be found, among others in the production of seemless steel pipes. The raw steel blocks, each weighing a few tons are heated up first in a round oven at a temperature of 1300 °C.
- After descaling of the surface, the steel block is prepunched in a hole press with a strength from a converted 2000 t. In the next sloping rolling mill the growing pipe rotates between two rollers that are positioned at an angle to each other. The punching is widened to the size of the mandrel diameter.
Previous solution / Competitor product
- N/A
Solution

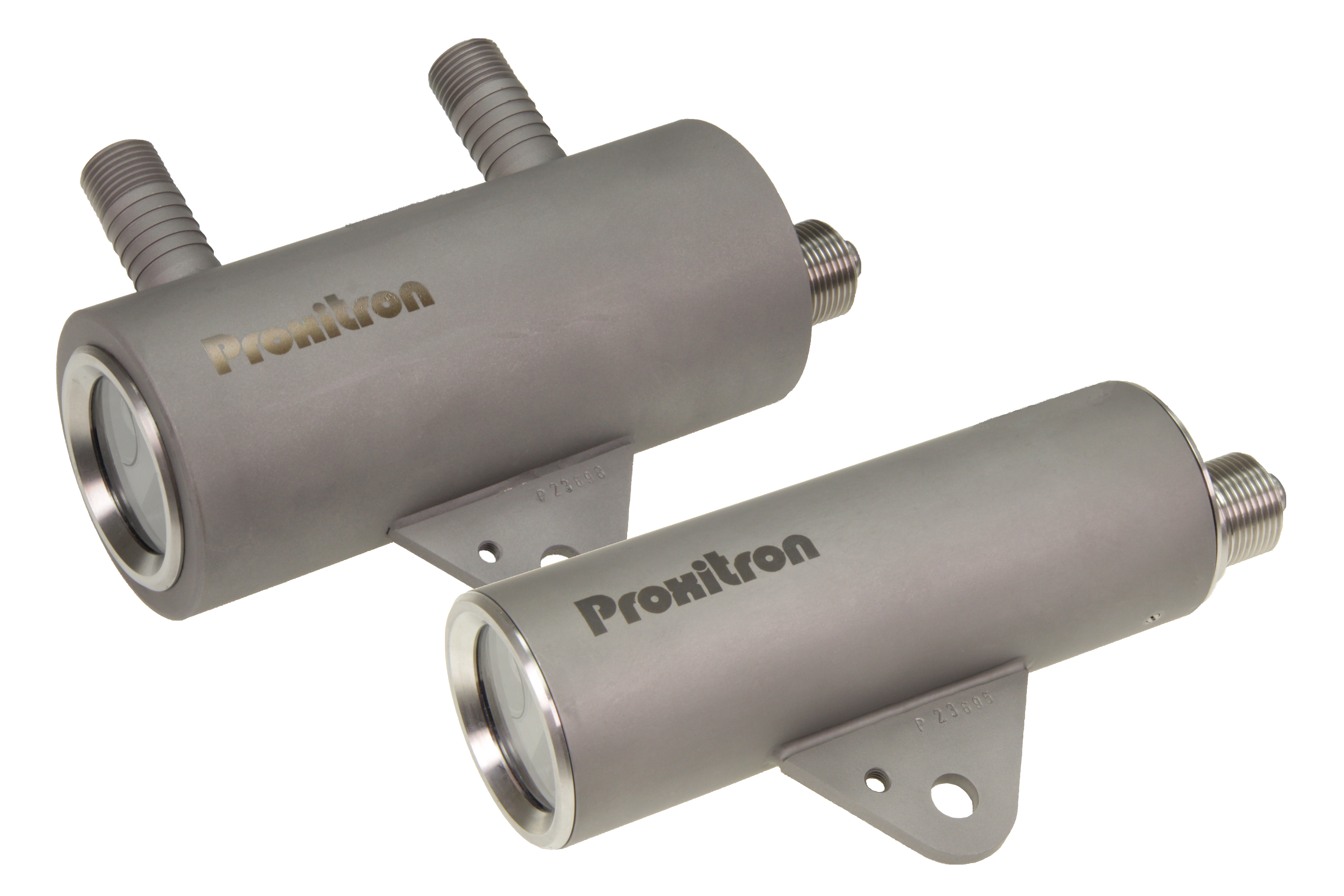

- The sensor that was installed at this application is the HMD OKA 2038.38 G with tube OL 19.
- The signal of the infrared sensors controls the movement of centering device and abutment. The point of view is restricted by the tube and prevents disturbances by steam in the cooling phase.
- An optimum adaptation to the operating conditions is given due to the adjustable response temperature. The HMD with self-learning response temperature (Auto-Teach function) is suited to continually changing conditions.
- The compact sensor with a stainless steel housing can withstand surrounding temperatures of up to 75° C. The use of a cooling jacket raises this up to 200° C.
- Alternatively sensors with fibre optic cables are available which permit an application at ambient temperatures up to 600° C without cooling.
Customer Benefits
- Maintenance-free
- High temperature stability
- Recognition of hot objects at big distances
- Self adjustment with Auto-Teach or step switch for the response temperature
Product Part number
- OKA 2038.38 G
![](https://www.manglamelectricals.com/wp-content/uploads/2021/06/OXA_2020-300x140.png)
Brand
- Proxitron
Accessories
- Piros swivel stand HM2
- Tube OL 19
- Pilot light unit (for alignment) DAK 308 + OL 26
- Different cable lengths (e.g. 15 m)
