Incremental Rotary Encoders for Heavy Duty Applications
Key Features
- Extremely robust and durable incremental rotary encoders
- For standard, main and auxiliary drives, e.g. in steel and rolling mills, mining, ports and cranes
- High flexibility due to a wide variety of device and signal options
Want to check if this is the right product for you?
Download Application QuestionnaireSpecifications
Pulse per rotation
100,000 PPR (HTL / TTL)
Shaft Insulation
up to 1 kV
Operating Temperature range
from -40 to +100 °C

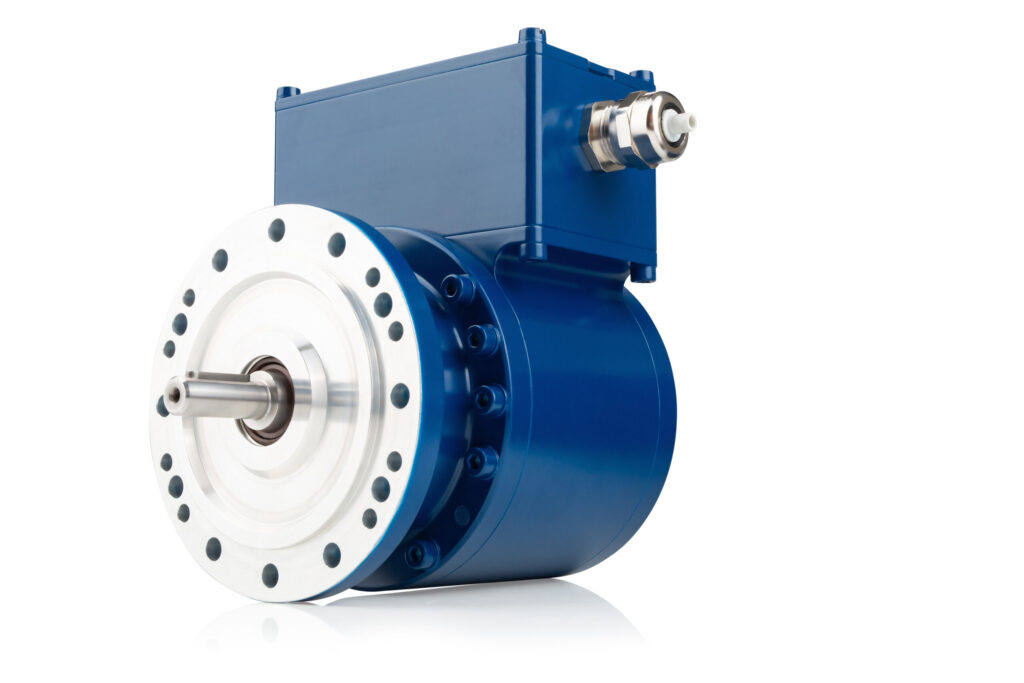

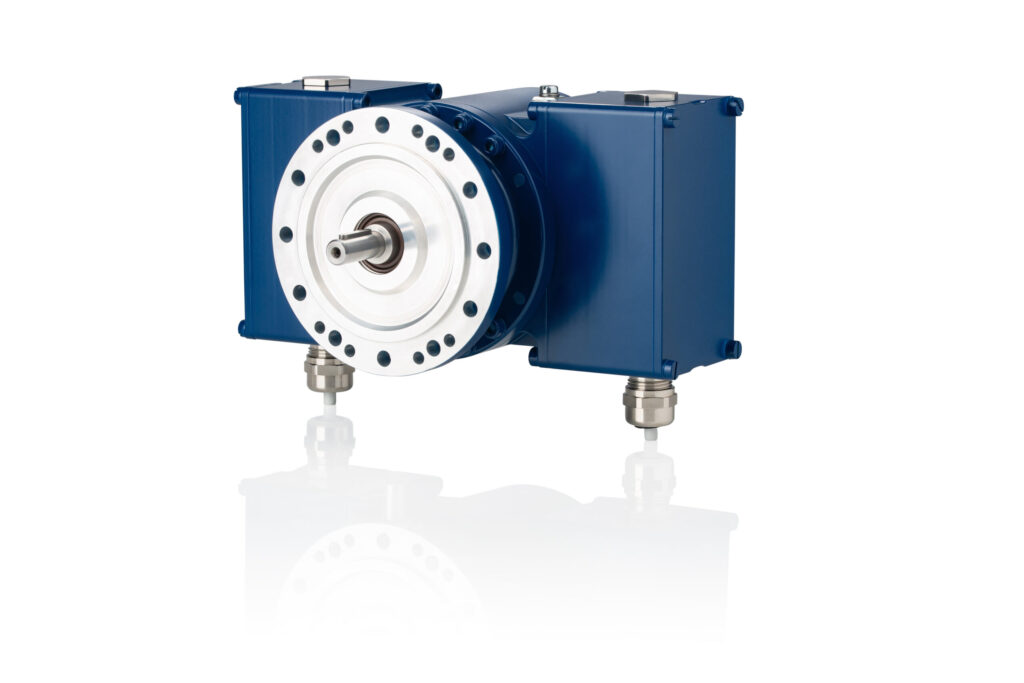

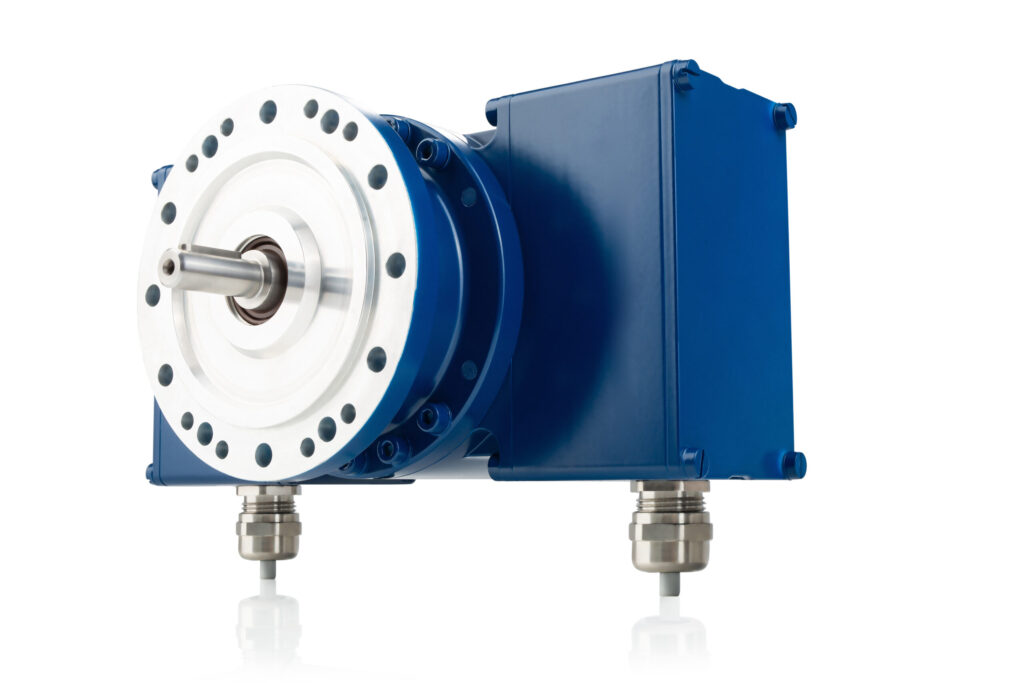

Solid shaft
up to Ø 14 mm (flange or foot mounting)

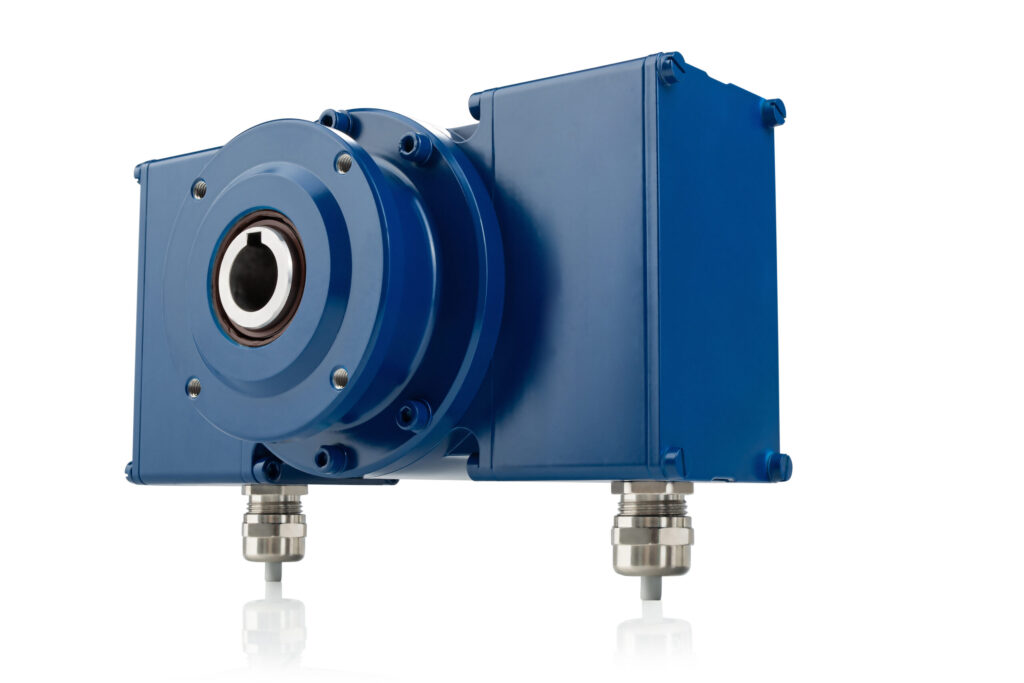

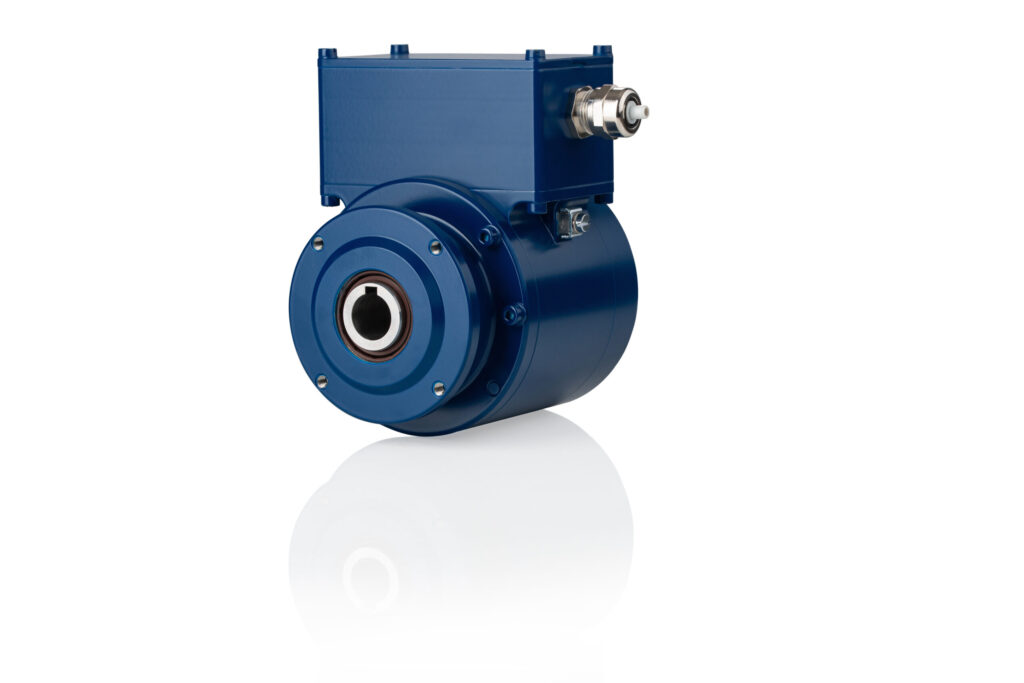

hollow shaft
up to Ø 25 mm
High degree Ingress Protection
up to IP66 / IP67
Signal Output
A (0°), B (90°), Z (marker pulse), status and inverted signals
What's New
- State-of-the-art scanning system
- Freely selectable pulse frequency (1–100,000), also for 2 independent systems
- Integrated LED status display
- Standardized high protection class (IP66 / IP67)
- New connection terminals
