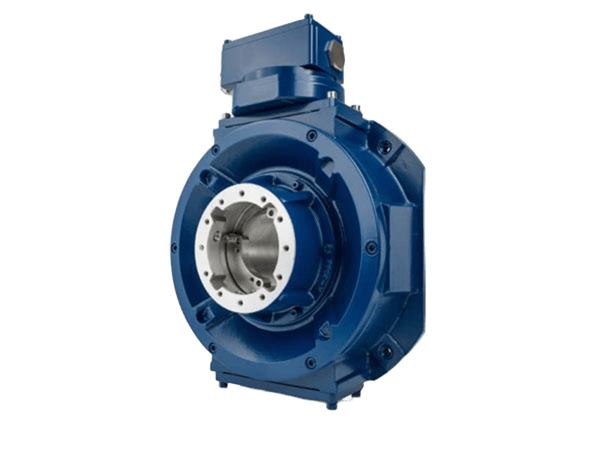

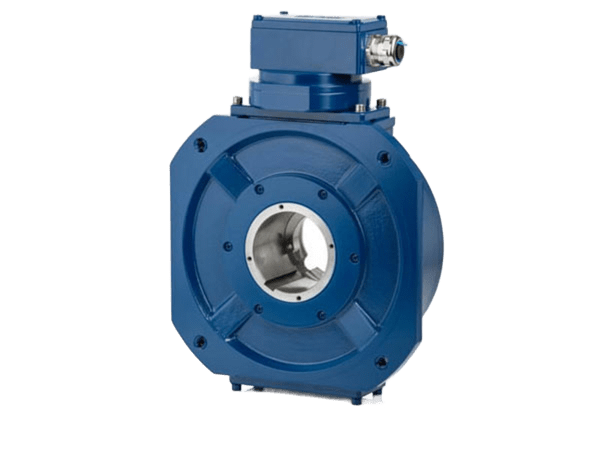

Optical rotary encoders with hollow shaft up to 80 mm
Key Features
- Robust Optical Encoder with versatile signal and configuration options
- Large Hollow Shaft Support up to Ø80 mm
- High Resolution up to 4,096 PPR (HTL/TTL)
- IP66 Protection with operating temperatures from -25°C to +85°C
- Flexible Integration with multiple signal and device options
- Optional Speed Switch, Fiber Optic & Up to 3 Attachments
Want to check if this is the right product for you?
Download Application QuestionnaireSpecifications
Supply voltage
12-30 VDC (5 VDC optional)
Signal amplitude
HTL or TTL
Number of pulses
600, 720, 750, 1000, 1024, 1200, 2048, 2560, 2800, 4096
Output signals
0° track (others: see device options)
Solid shaft
Ø 11 mm, Ø 14 mm with feather key
Hollow shaft
up to Ø 80 mm with feather key
Operating Temperature range
-25 °C to +85 °C
Degree of protection
up to IP66
Special functions
Available in FO communication via- fiber optic cable 50 / 125 μm or 62.5 / 125 μm
Certificates / Approvals
UL/CSA
What's New
- State-of-the-art scanning system
- Freely selectable pulse frequency (1–100,000), also for 2 independent systems
- Integrated LED status display
- Standardized high protection class (IP66 / IP67)
- New connection terminals
