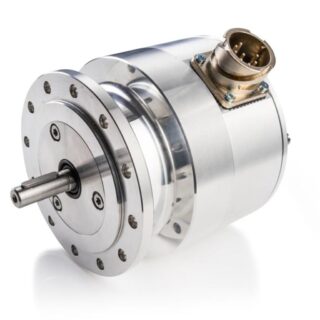

Speed feedback for main drives
Key Features
- Speed measurement and monitoring
- High Shock and Vibration Resistance
- Robust Thick Walled Housing upto IP67 protection
- Additional Overspeed functionality
- Safety certified units with SIL3, PLe certifications
- Dynamic feed-back control
- Designed to work in harsh environment such as wet areas in rolling mill or sea air
- Available in Solid shaft & hollow shaft designs
- Flange, Foot mountings & both combined mountings
- Tailor made solutions for different applications
Want to check if this is the right product for you?
Download Application QuestionnaireSpecifications
Pulse per rotation
Up to 1 million (HTL/TTL)
Vibration / Shock resistance
20 g / 150 g
Operating Temperature range
-40°C +85°C
Solid shaft
Ø 11, 14 mm
hollow shaft
Ø 20, 25, 50mm special design available up to Ø 150mm
High degree Ingress Protection
IP66/67
Electrical connections
Terminal Box, FOC Connector, Burndy, M23 plug or Fixed cable connection
Signal Output
0°, 90°, N, Status (& inverted signal)
Applications of incremental encoder
- Main motor slab sizing press
- Motor roller table finishing mill
- In motor coble pusher
- Motor roller table cooling
- Speed measurement in measuring roll and flatness measuring roll
- In the idler roll of 20 roll mill
