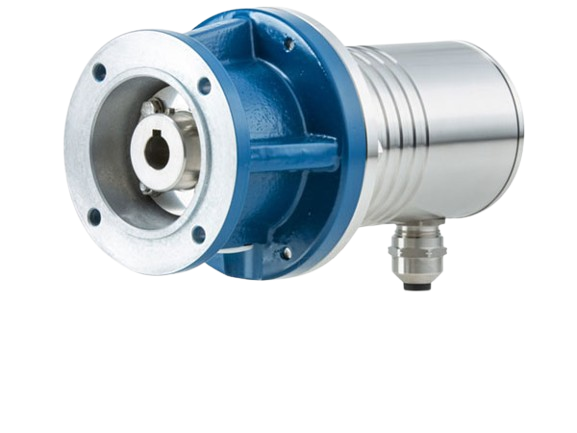

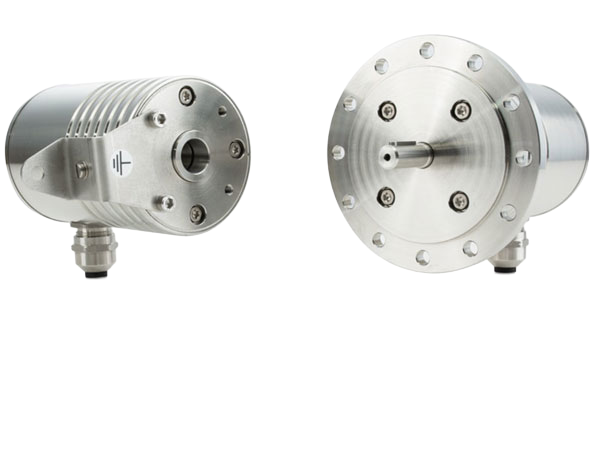

Incremental rotary encoders with stainless steel housing
Key Features
- V4A Stainless Steel Housing resistant to acids, alkalis, and seawater
- Hybrid Insulated Ball Bearings for extended service life
- Solid & Hollow Shaft Options up to Ø14 mm (solid) and Ø17 mm (hollow)
- High Resolution up to 2,048 PPR (HTL/TTL)
- IP66 Protection with operating temperatures from -25°C to +85°C
- Optional Speed Switch, Fiber Optic & Liquid-Tight Cable Protection
Want to check if this is the right product for you?
Download Application QuestionnaireSpecifications
Supply voltage
12-30 VDC
Signal amplitude
HTL or TTL
Number of pulses
1 bis 2048 (set ex works, selectable)
Output signals
0°, 90°, N and inverted signals
Solid shaft
Ø 11 mm, Ø 14 mm with feather key
Hollow shaft
Ø 16 mm with clamp or Ø 17 mm with tapered shaft 1:10
Operating Temperature range
-25 °C to +85 °C
Degree of protection
up to IP66
Special functions
Available in FO communication via- fiber optic cable 50 / 125 μm or 62.5 / 125 μm
Certificates / Approvals
UL/CSA
What's New
- State-of-the-art scanning system
- Freely selectable pulse frequency (1–100,000), also for 2 independent systems
- Integrated LED status display
- Standardized high protection class (IP66 / IP67)
- New connection terminals
Related Products
-
Read moreKey Features

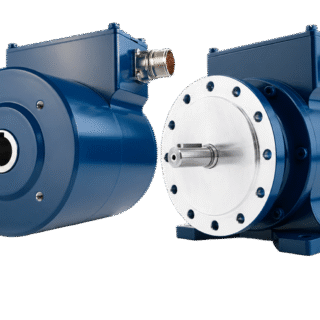

- Seawater-Resistant Aluminium Housing for harsh, wet environments
