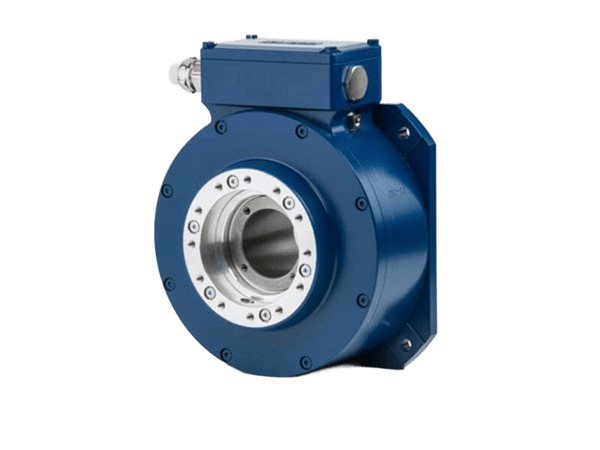

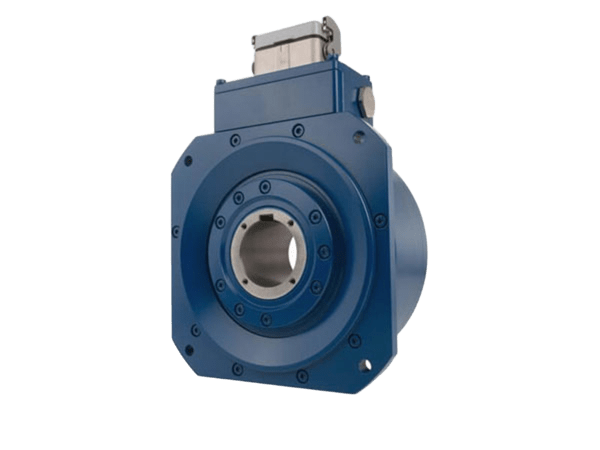

Optical rotary encoders with hollow shaft up to 50 mm
Key Features
- Robust Optical Encoder with versatile signal and configuration options
- Large Hollow Shaft Support up to Ø50 mm
- High Resolution up to 5,000 PPR (HTL/TTL)
- IP66 Protection with operating temperatures from -25°C to +85°C
- Integrated Speed Switch option for overspeed monitoring
- Optional Fiber Optic Transmission and support for up to 2 attachments
Want to check if this is the right product for you?
Download Application QuestionnaireSpecifications
Supply voltage
12-30 VDC (5 VDC optional)
Signal amplitude
HTL or TTL
Number of pulses
512, 1000, 1024, 1200, 1800, 2000, 2048, 2500, 5000
Output signals
0° track (others: see device options)
Operating Temperature range
-25 °C to +85 °C
Degree of protection
up to IP66
Solid shaft
Ø 11 mm, Ø 14 mm
hollow shaft
up to Ø 50 mm with feather key
Special functions
Available in FO communication via- fiber optic cable 50 / 125 μm or 62.5 / 125 μm
Certificates / Approvals
Safety certified:
SIL 3 / PL e for speed-oriented safety functions SLS, SSR, SSM, SLA, SAR
SIL 2 / PL d for position-oriented safety functions SDI, SS1, SS2, SOS, SLP, SLI, SCA
What's New
- State-of-the-art scanning system
- Freely selectable pulse frequency (1–100,000), also for 2 independent systems
- Integrated LED status display
- Standardized high protection class (IP66 / IP67)
- New connection terminals
