Incremental optical encoders, safety certified (SIL 3, PL e)
Key Features
- Seawater-Resistant Aluminium Housing for harsh, wet environments
- SIL 3 / PL e Certified for functional safety applications

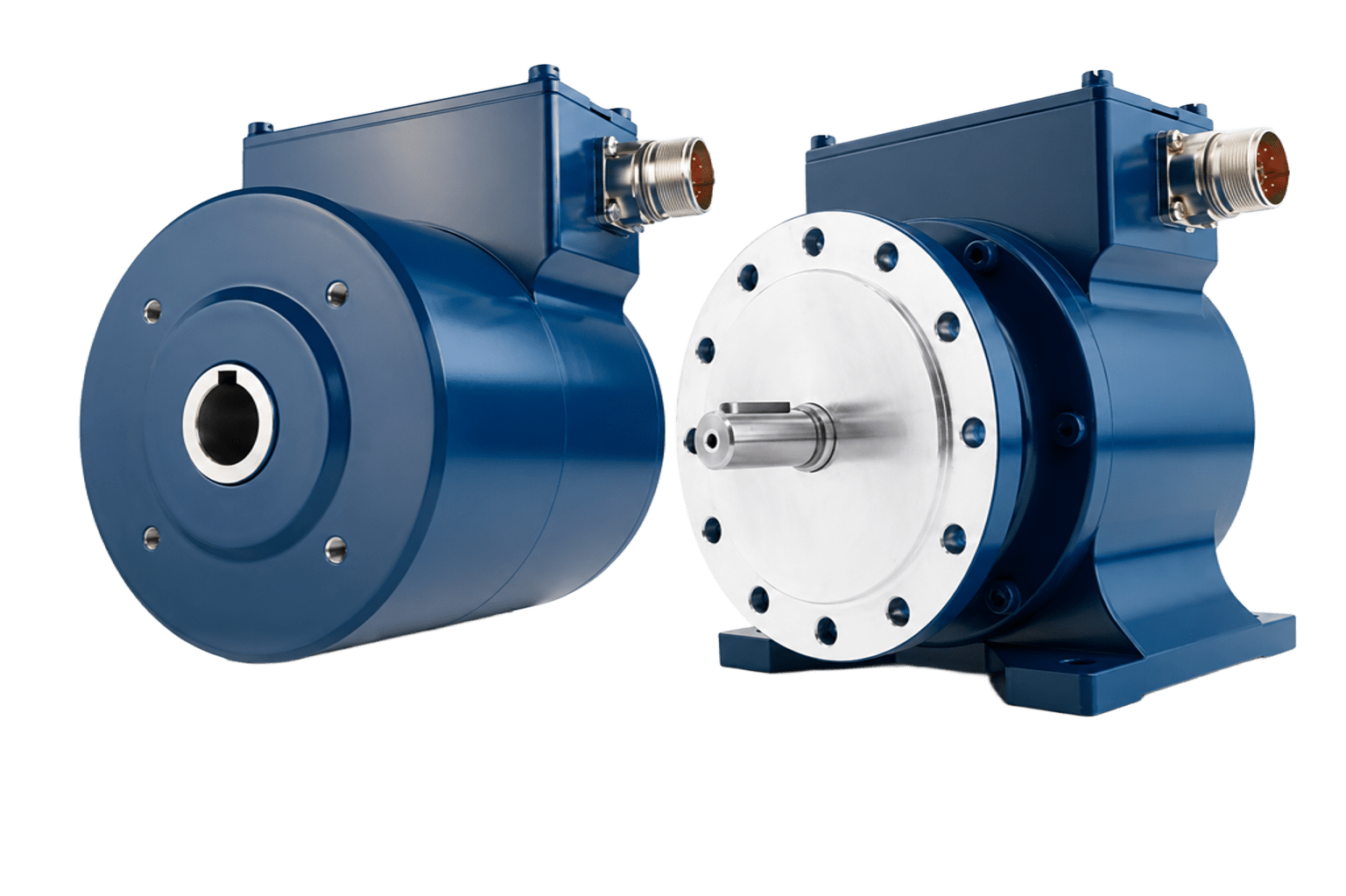

- Solid & Hollow Shaft Options up to Ø14 mm (solid) and Ø20 mm (hollow)
- High Resolution up to 4,096 PPR (HTL/TTL) and 4,096 sine periods
- IP67 Protection with operating temperatures from -40°C to +85°C
- Safety-Certified Shaft Attachment for secure installation
Want to check if this is the right product for you?
Download Application QuestionnaireSpecifications
Supply voltage
12-30 VDC
Signal amplitude
HTL or TTL
Sin/Cos
Number of pulses
1024, 2048, 4096
Output signals
0°, 90° and inverted signals,Reference pulse (N) without SIL / PL, with inverted signal
Operating Temperature range
-40 °C to +85 °C
Degree of protection
up to IP66 / IP67
Solid shaft
Ø 11 mm, Ø 14 mm
hollow shaft
Ø 20 mm with keyway (for shafts up to max. length: 48 mm)
Certificates / Approvals
Safety certified:
SIL 3 / PL e for speed-oriented safety functions SLS, SSR, SSM, SLA, SAR
SIL 2 / PL d for position-oriented safety functions SDI, SS1, SS2, SOS, SLP, SLI, SCA
What's New
- State-of-the-art scanning system
- Freely selectable pulse frequency (1–100,000), also for 2 independent systems
- Integrated LED status display
- Standardized high protection class (IP66 / IP67)
- New connection terminals
