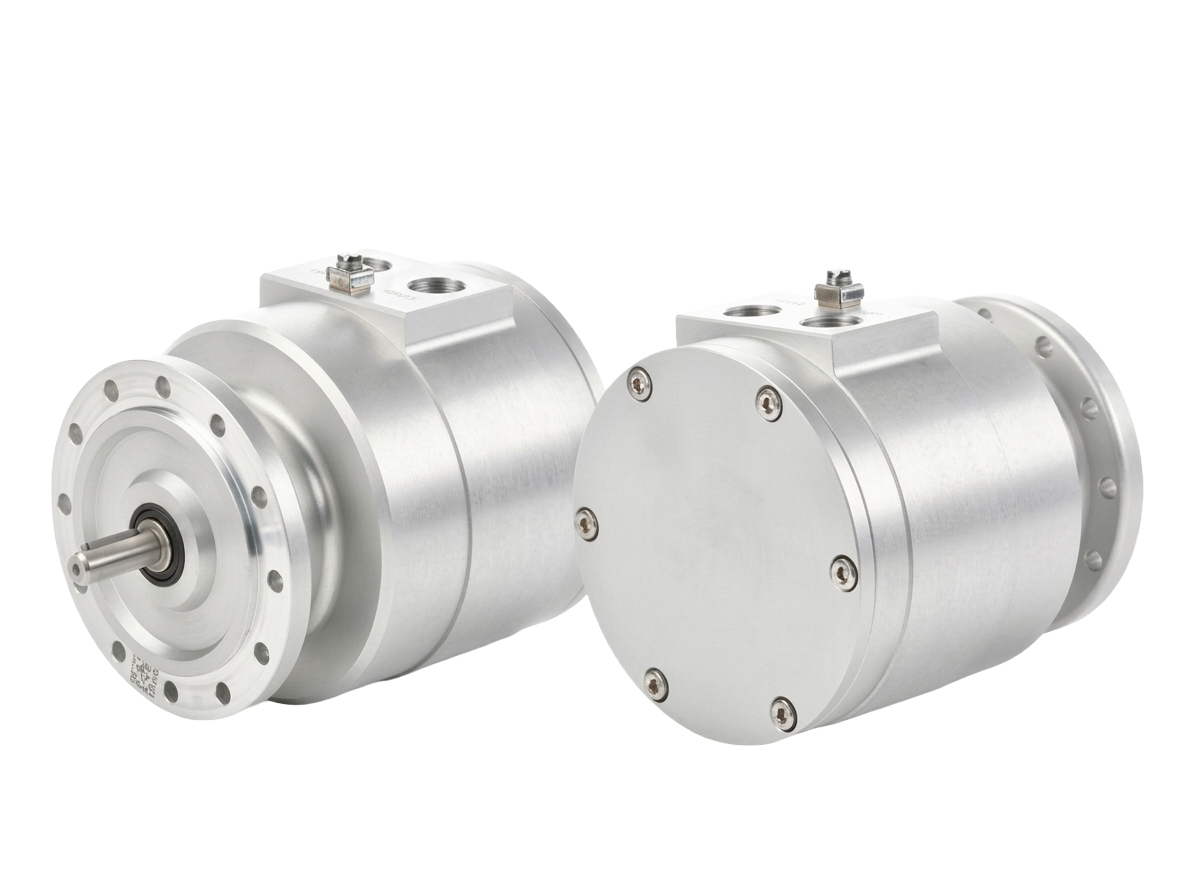

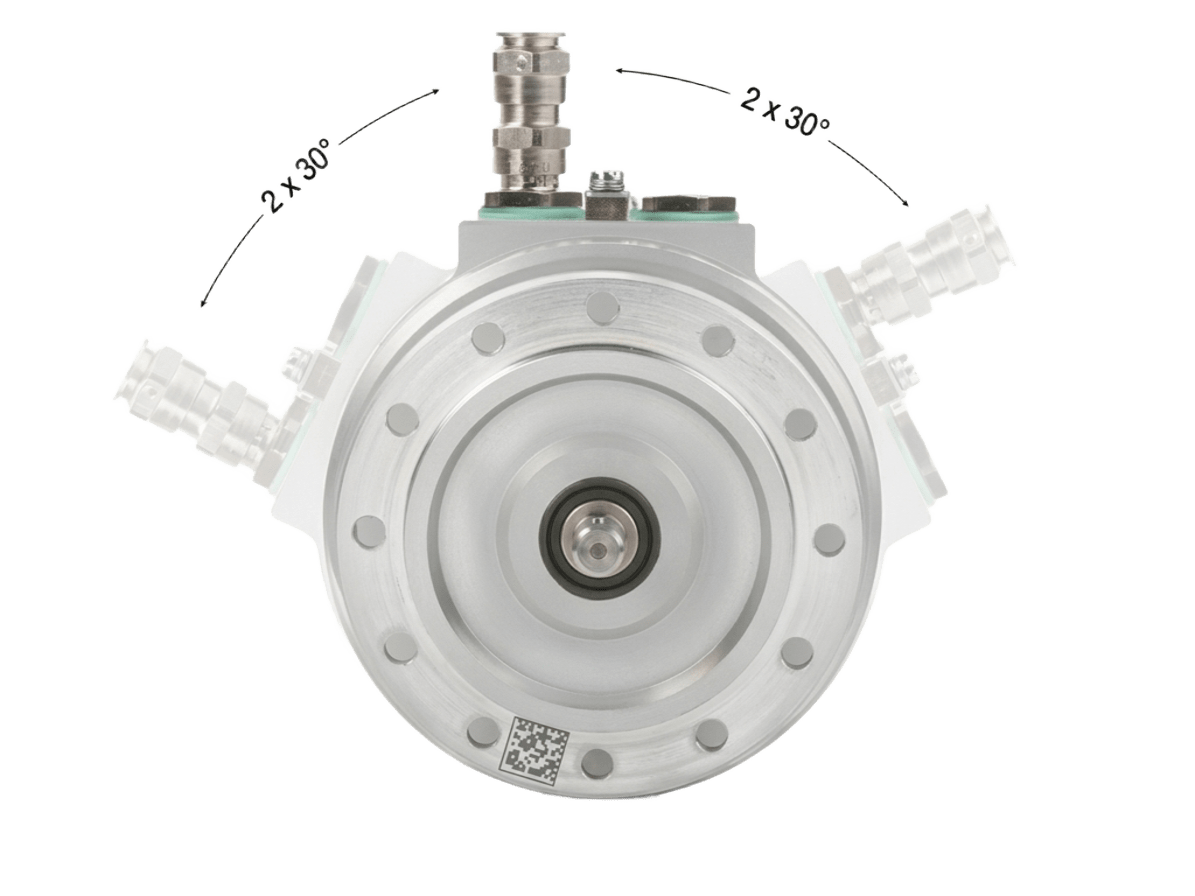

Incremental optical encoders, Ex certified (ATEX / IECEx)
Key Features
- ATEX & IECEx Certified for hazardous gas and dust zones
- Flameproof Aluminium Housing with seawater-resistant construction
- High Resolution up to 250,000 PPR (HTL/TTL) and 2,500 sine periods
- Solid Shaft Options – Ø11 mm or Ø14 mm with flange mounting
- IP66 Protection with operating temperatures from -40°C to +60°C
- Optional Dual Signal Output for enhanced system integration
Want to check if this is the right product for you?
Download Application QuestionnaireSpecifications
Supply voltage
12-30 VDC
Signal amplitude
HTL or TTL
Sin/Cos
Number of pulses
Standard pulse rates for HTL, TTL and Sin/Cos: 500, 600, 1000, 1024, 1200, 1300, 2500
Output signals
0°, 90°, N, status and inverted signals
Operating Temperature range
T5: -40 … +60 °C
T6: -40 … +55 °C
Degree of protection
Ex-proof according to ATEX / IECEx:
II2G Ex db IIC T6 Gb X
II2D Ex tb IIIC T85°C Db X
Ex db IIC T6 Gb X
Ex tb IIIC T85°C Db X
Shaft Insulation
up to 1 kV
Solid shaft
up to Ø 14 mm (flange or foot mounting)
hollow shaft
up to Ø 25 mm
What's New
- State-of-the-art scanning system
- Freely selectable pulse frequency (1–100,000), also for 2 independent systems
- Integrated LED status display
- Standardized high protection class (IP66 / IP67)
- New connection terminals
