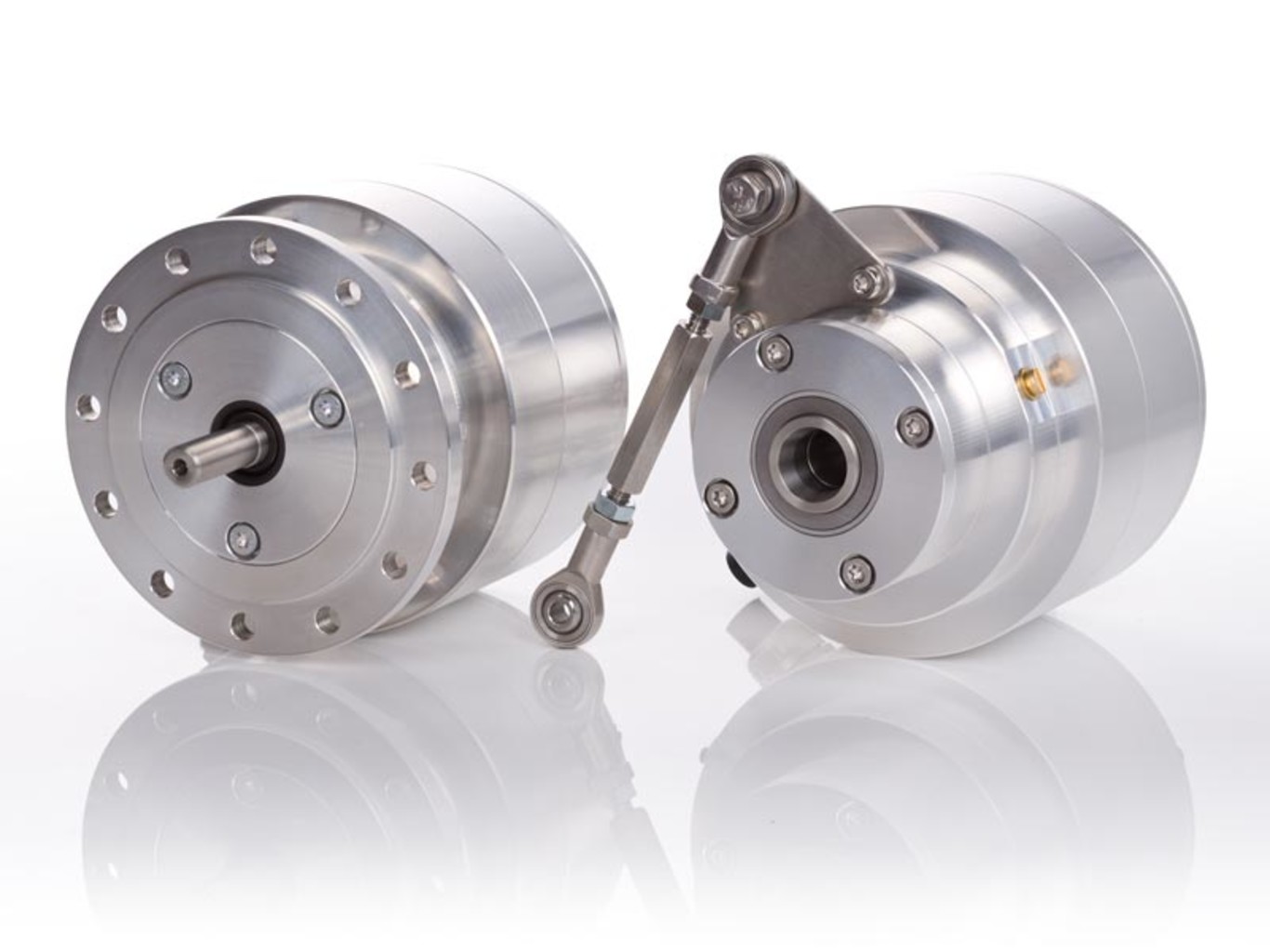

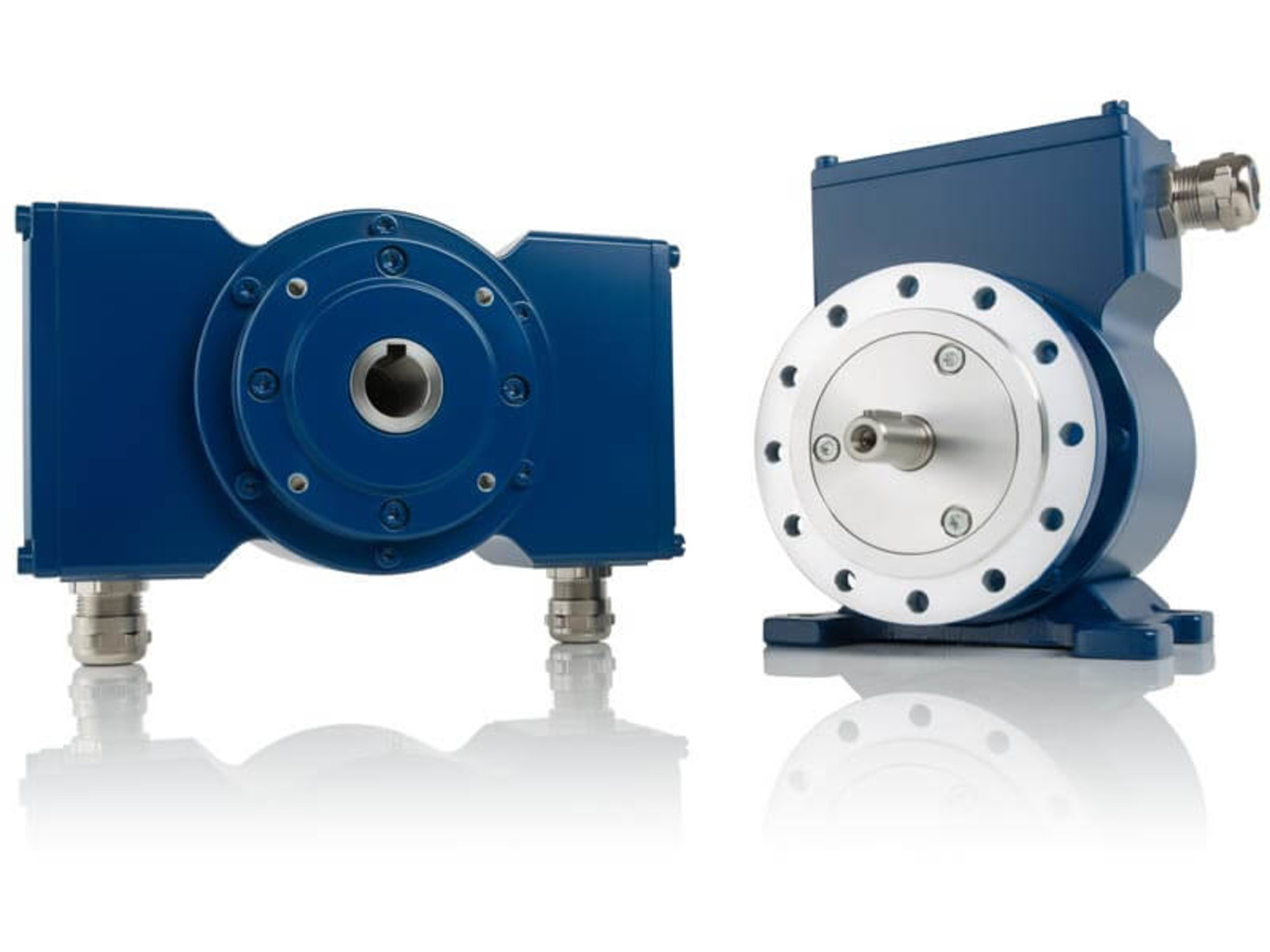

Heavy duty programmable overspeed switch
Key Features
- High switching accuracy
- Programmable switches
- 1 to 4 switching points
- Error/ failure output
- Diagnostic switch
- Monitor speed and standstill
- Switching speed as factory default or user-configurable by PC software
- Solid shaft, hollow shaft, combinations
- Safety integrated speed monitoring (programmable by PC software)
Want to check if this is the right product for you?
Download Application QuestionnaireSpecifications

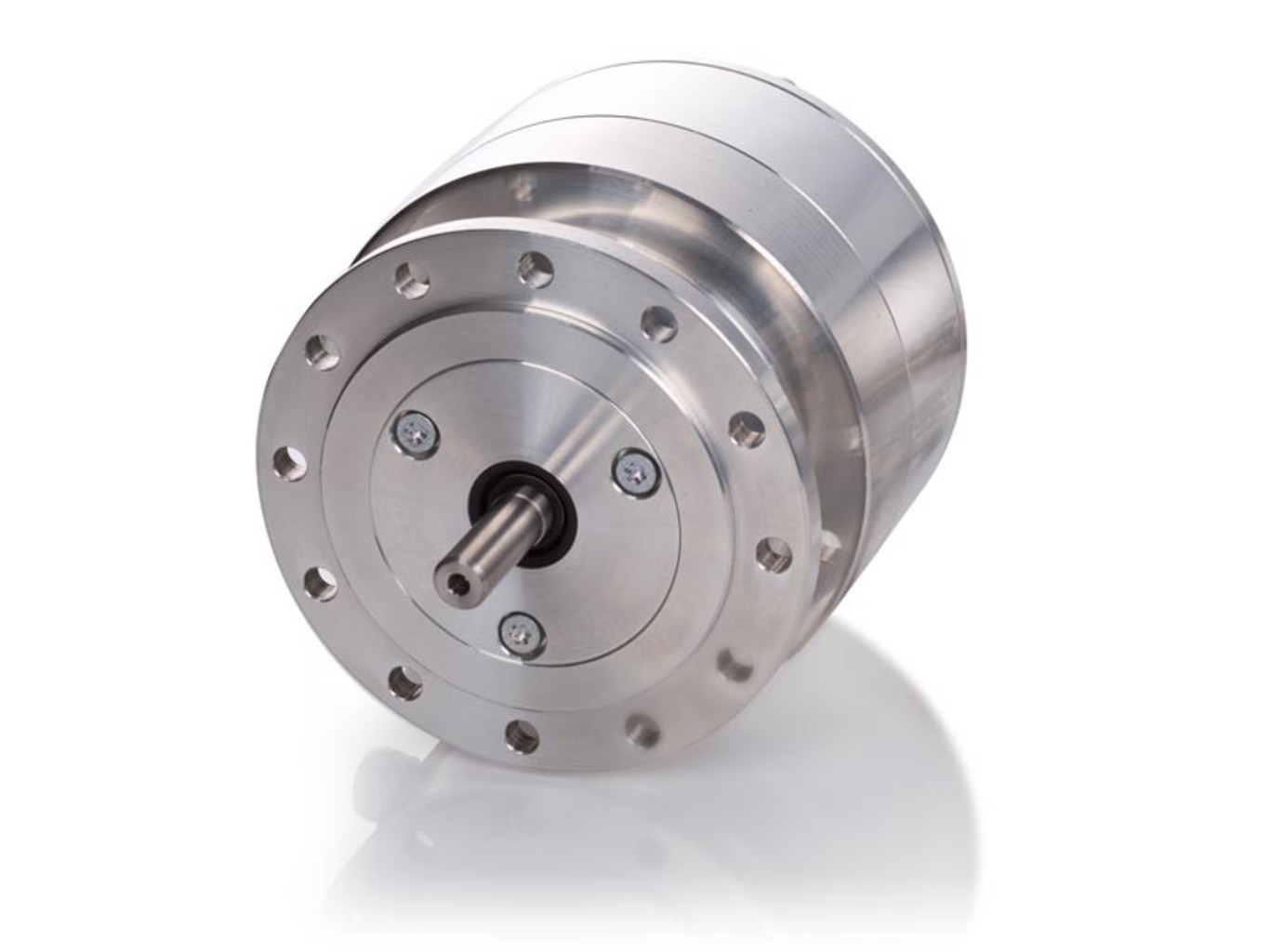

Solid shaft
max 11 mm optional 14mm with and without foot
Hollow shaft
16mm - 25mm
Pulse per rotation
1024- 2048
1,2 or 4 switches
Switching speed range
0.63-6000 rpm with solid shaft
0.63-4000 rpm with hollow shaft
Temperature range
-25°C to 85°C
Switching voltage
2-30 VDC or 30-230 VAC/DC
Signal Output
Generic applications of overspeed switch
- In the hoist of ladle crane
- Main drive finishing stands /coiler of rolling mill
Related Products
-
Read moreKey Features
- Fast response
- Multitude of functions for monitoring overspeed, underspeed, standstill, direction of rotation
- Backlight LCD display
- Device can be parameterised with PC
- Quick and easy fastening
- Equipped with 3 potential free changeover output relays
- Efficient control and regulation
Want to check if this is the right product for you?
