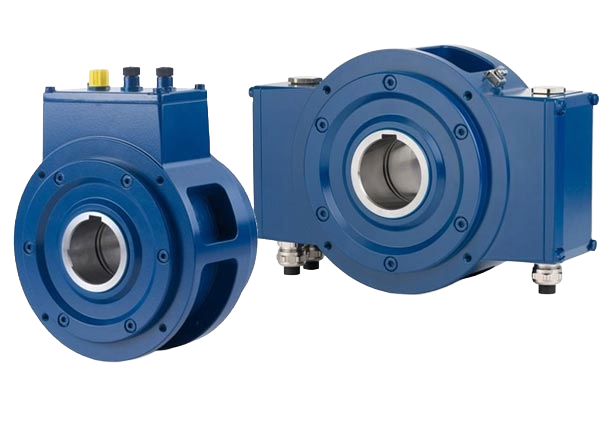

Main mill motor encoder
Key Features
- Heavy-duty rugged design, other encoder can be attached
- Service life extended many times under the most extreme of operating conditions
- High signal quality for more reliable speed and angular position measurement
- Solid shaft, hollow shaft, combinations
Want to check if this is the right product for you?
Download Application QuestionnaireSpecifications
Supply voltage
12-30 VDC
Temperature range
-40 °C to +85 °C
Resolution
Single turn max. 16 bit
Degree of protection
IP66/67
Interfaces
EtherCAT, SSI, SSI-Inkremental, Parallel
Maximum rotation
Solid shaft: up to 6000 rpm
Hollow shaft: up to 4000 rpm
Signal Output
HTL
Generic applications of absolute encoder
All-in-one unit with speed (incremental) signal for drive speed feedback and absolute signal for the main mill motor rotor position.
Possible to add other functions like overspeed switch and dual output for redundancy purpose.
