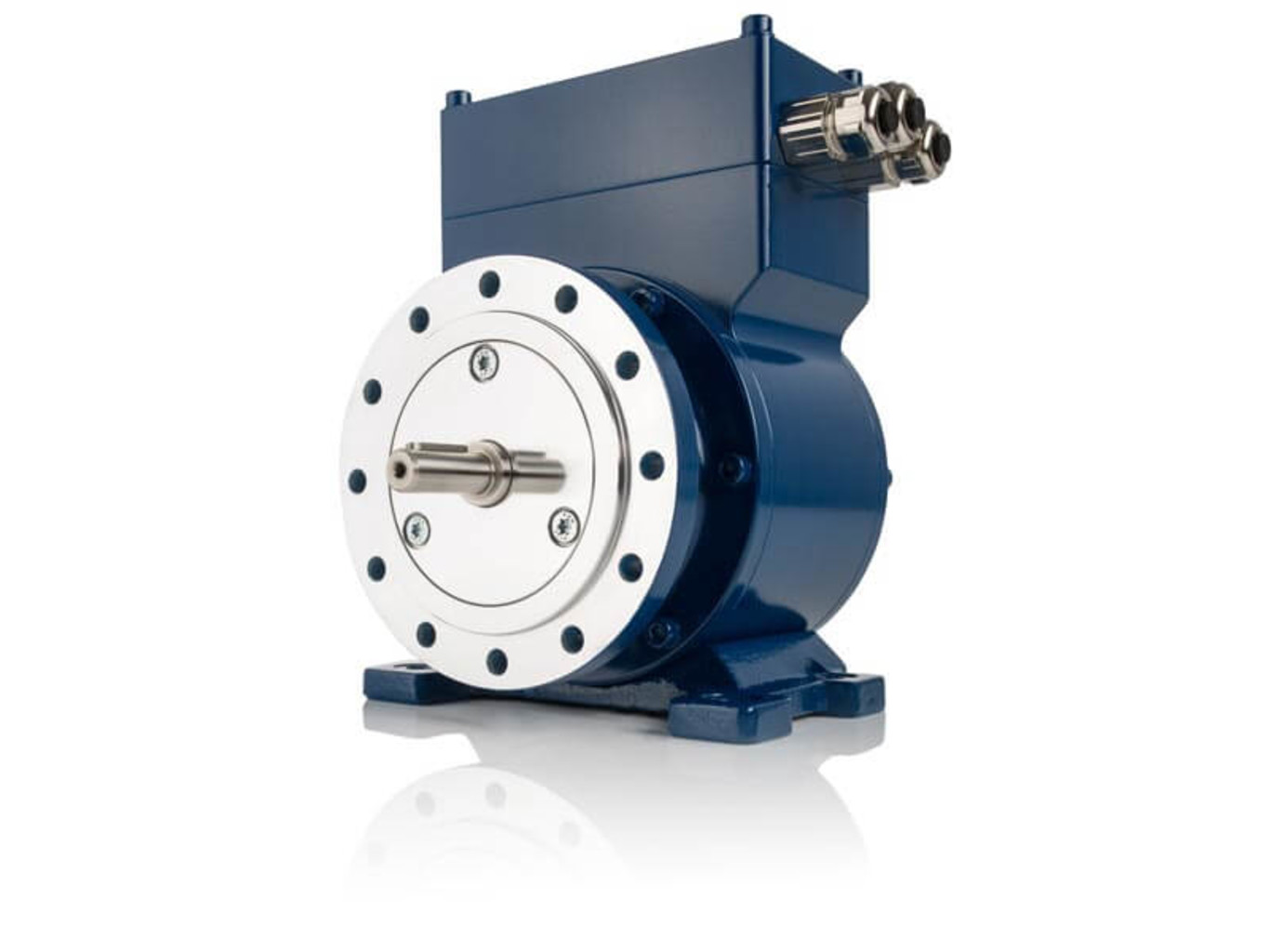

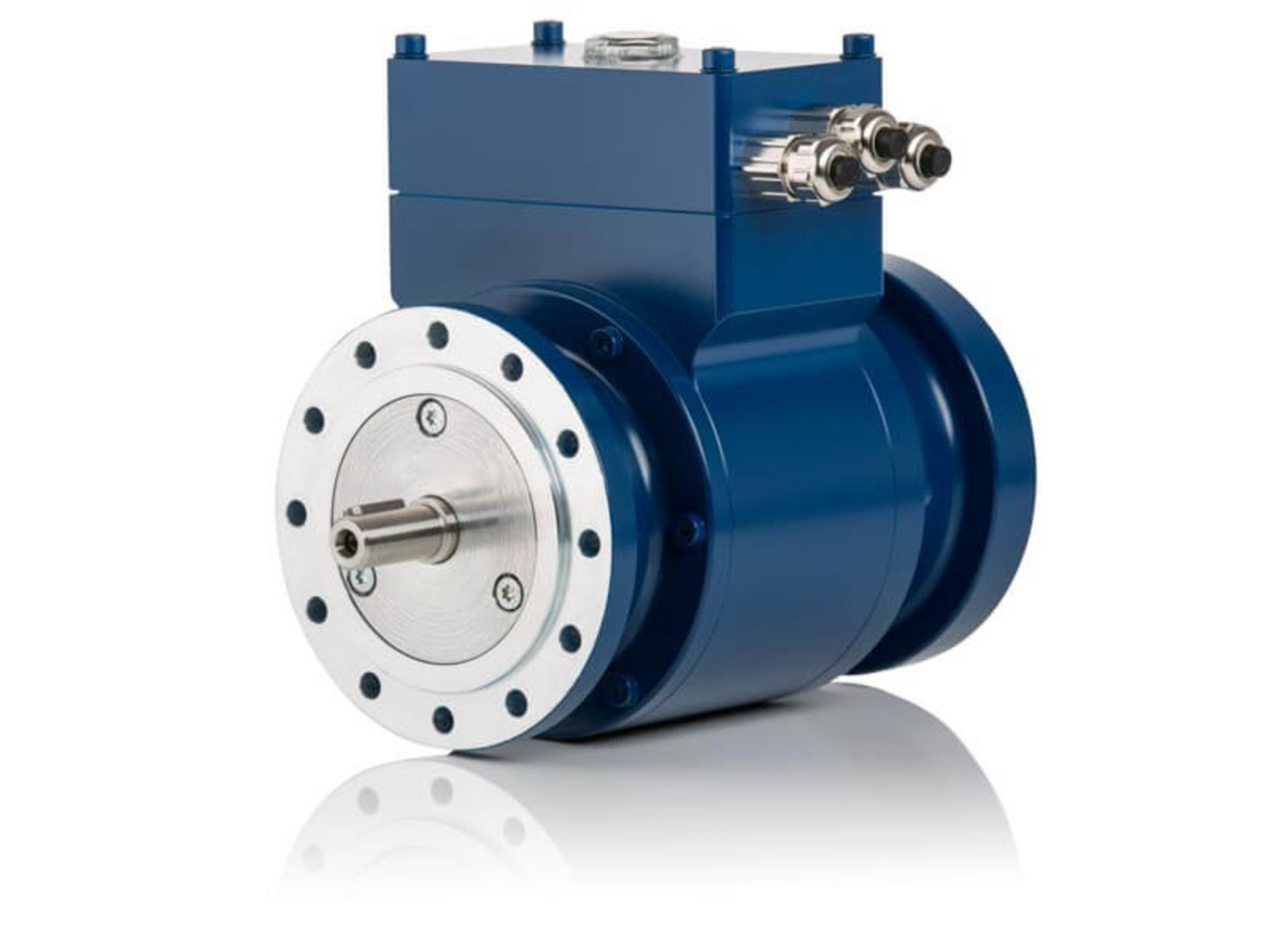

Heavy duty absolute encoder

Key Features

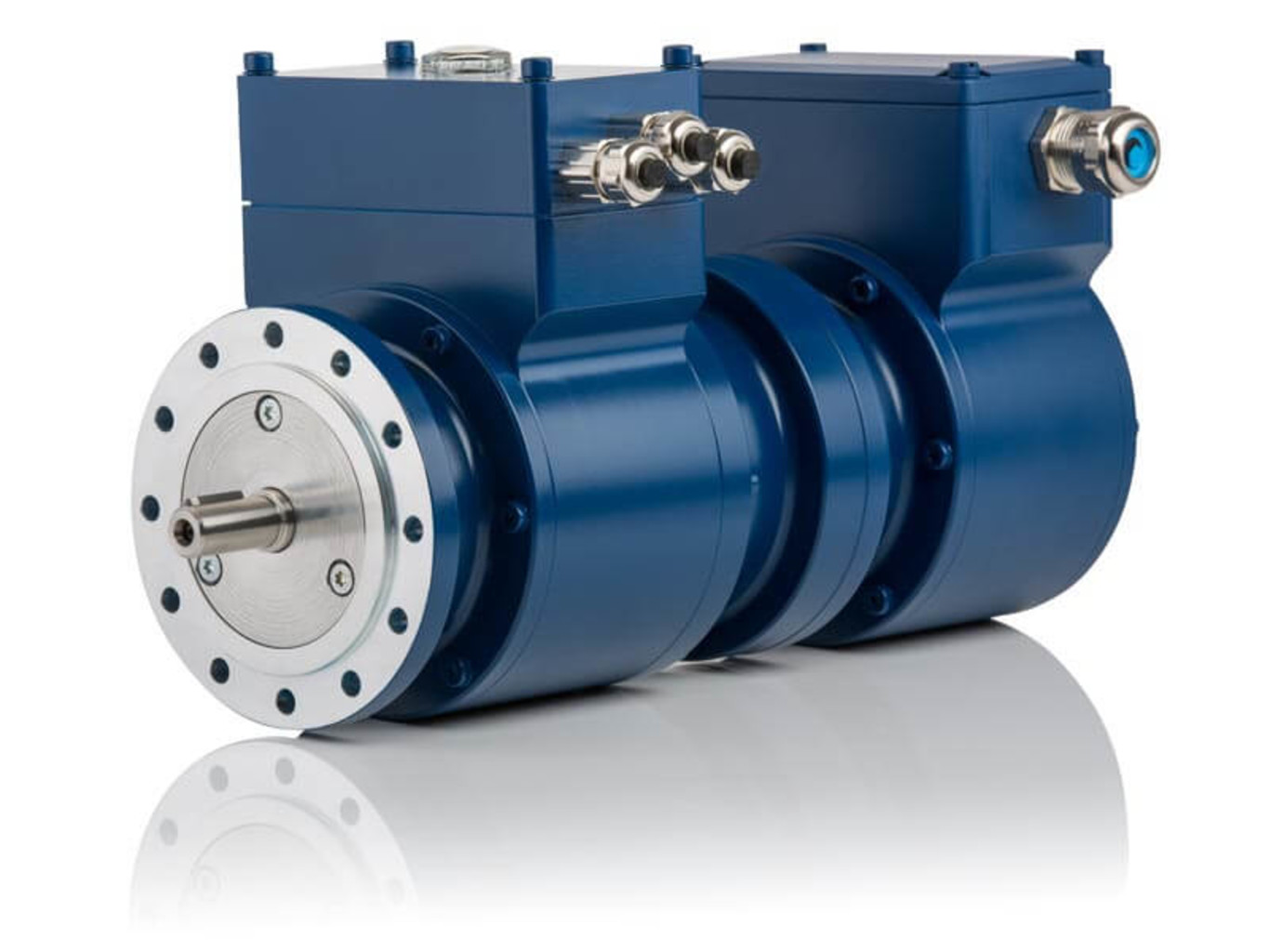

  • Heavy-duty rugged design, other encoder can be attached
  • Service life extended many times under the most extreme of operating conditions
  • High signal quality for more reliable speed and angular position measurement

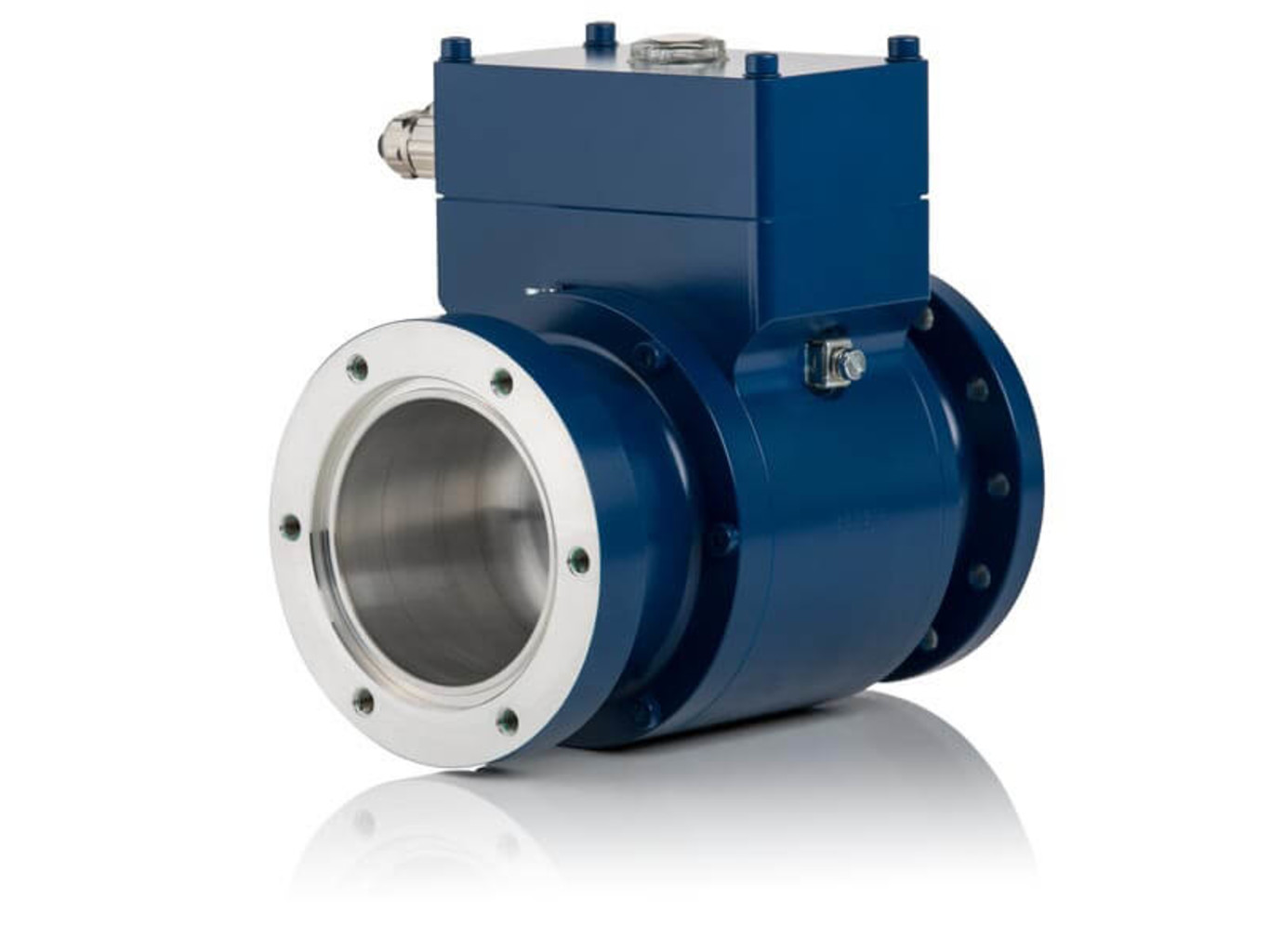

  • Solid shaft, hollow shaft, combinations



Want to check if this is the right product for you?

Download Application Questionnaire

Specifications

Supply voltage

12-30 VDC

Temperature range

-40 °C to +85 °C

Resolution

Single turn max. 16 bit

Multiturn max. 12 bit

Degree of protection

IP66/67

Interfaces

EtherCAT, SSI, SSI-Inkremental, Parallel

Maximum rotation

Solid shaft: up to 6000 rpm

Hollow shaft: up to 4000 rpm

Signal Output

EtherCAT, SSI, SSI-Inkremental, Parallel

Generic applications of absolute encoder

  • Tilting drives of converter.
  • Oxygen lance position monitoring.
  • Ladle turret drive
  • Shear hold down/ levelling roll and shear main drive
  • Side guides in front of crop shear
  • Hoist of ladle crane on rope drum side
  • Dummy bar car/chain drive of slab caster
  • Entry and exit of roller changing car in tandem cold mill
