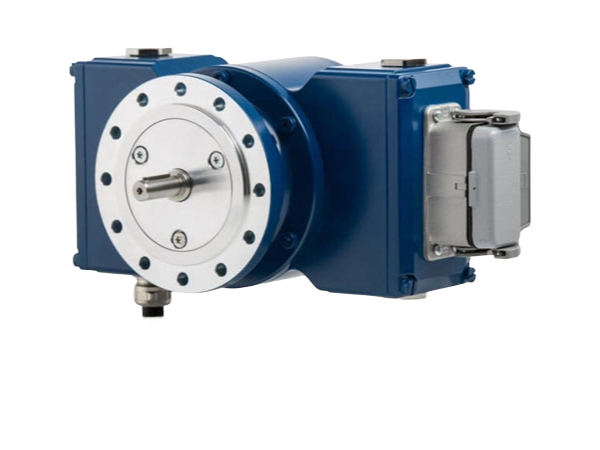

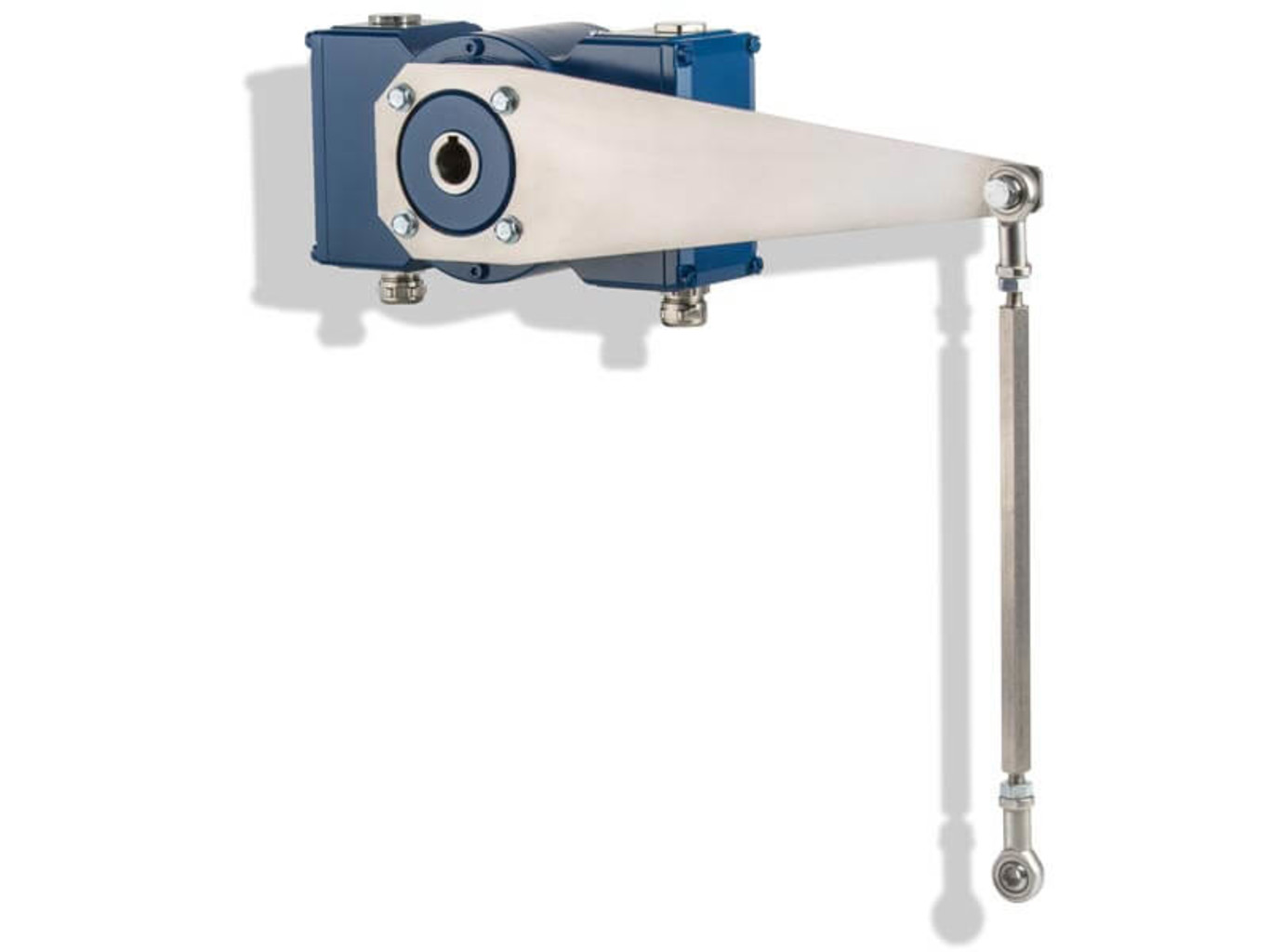

Singleturn absolute rotary encoders for heavy-duty usage
Key Features
- Heavy-Duty Singleturn Absolute Encoder for harsh industrial environments
- Ideal for Steel Mills, Mining, Ports & Cranes
- 16-Bit Singleturn Resolution for precise position feedback
- Solid & Hollow Shaft Options up to Ø14 mm (solid) and Ø20 mm (hollow)
- IP66/IP67 Protection with operating temperatures from -40°C to +85°C
- Parallel, SSI & EtherCAT Interfaces with optional incremental output and up to 2 attachments
Want to check if this is the right product for you?
Download Application QuestionnaireSpecifications
Supply voltage
12-30 VDC
Resolution
Singleturn max. 16 bit (65536 steps per rotation)
Maximum Speed / Frequency
Solid shaft: up to 6000 rpm
Hollow shaft: up to 4000 rpm
Interface
EtherCAT, SSI, SSI-Inkremental, Parallel
Number of pulses
500, 600, 1000, 1024, 1200, 1300, 2000, 2048, 2400, 2500
Solid shaft
Ø 11 mm, Ø 14 mm with feather key
Hollow shaft
Hollow shaft: Ø 20 mm with keyway; Ø 16 mm with clamp
Output signals
0°, 90°, N, status and inverted signals
Operating Temperature range
-40 to +85 ºC
Degree of protection
up to IP66 / IP67
Certificates / Approvals
UL/CSA
Device options / Function
- Additional single incremental output
- Additional double incremental output with reference pulse in second terminal box
Specifications
Supply voltage
12-30 VDC
Temperature range
-40 °C to +85 °C
Resolution
Single turn max. 16 bit
Degree of protection
IP66/67
Interfaces
EtherCAT, SSI, SSI-Inkremental, Parallel
Maximum rotation
Solid shaft: up to 6000 rpm
Hollow shaft: up to 4000 rpm
Signal Output
HTL
TTL
Generic applications of absolute encoder
- Installed in the tilting drives of converter.
- Oxygen lance position monitoring in the converter.
- In ladle turret drive of compact/endless strip production
- Shear hold down and shear levelling roll and shear main drive in compact/endless strip production
- Pendulum shear hold down roll
- Side guides in front of crop shear
- In the hoist of ladle crane, present between steelmaking and casting plants.
- In the dummy bar car/chain drive of slab caster
- Entry and exit of roller changing car in tandem cold mill
