Incremental Encoders
Incremental Encoders
The incremental encoders can be deployed in a wide variety of applications to measure the speed of main drives, auxiliary and secondary drives in steel and rolling mills, in mining operations as well as in ports and crane systems.

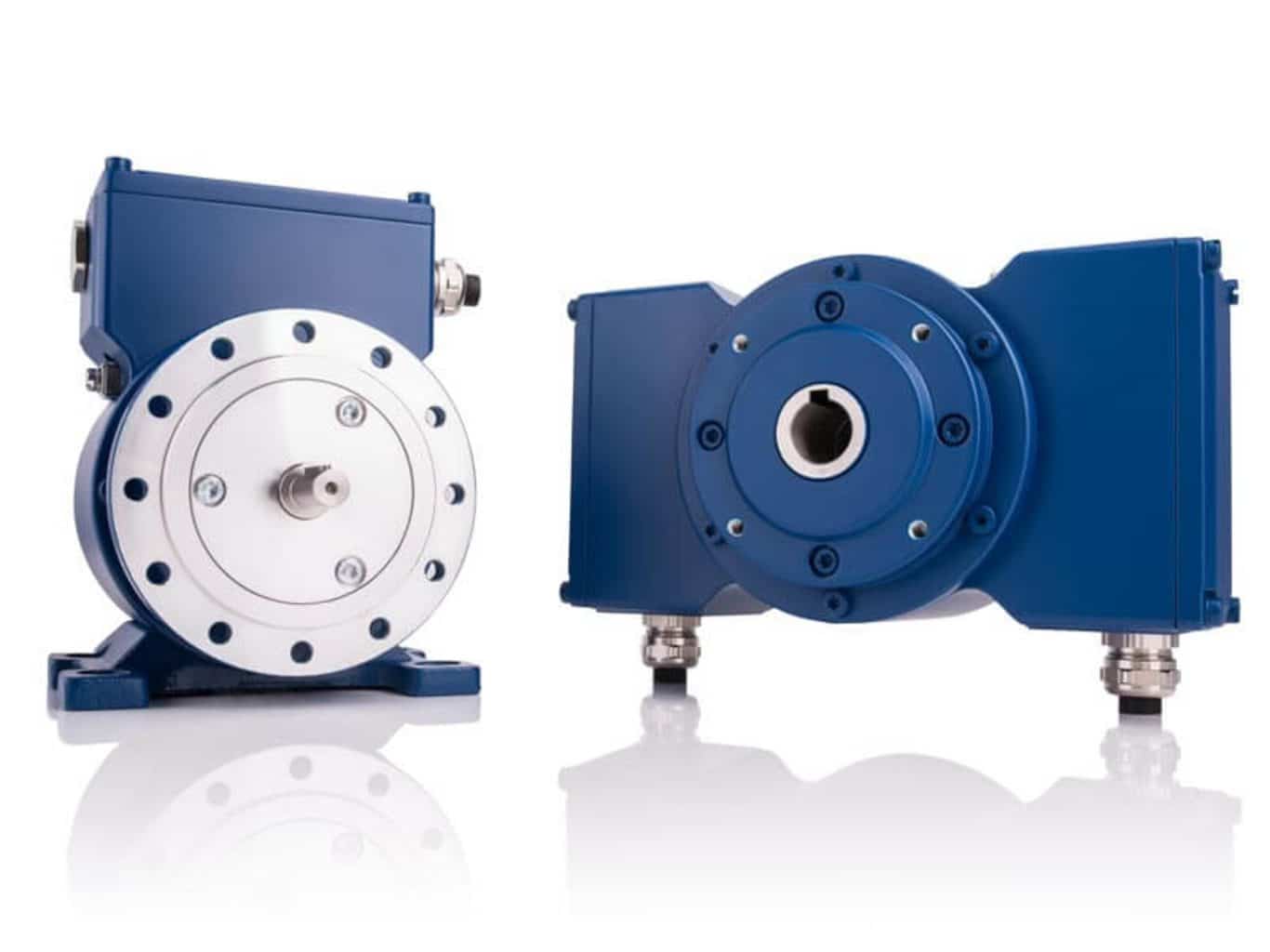

All rounder for speed measurement
Pulse per rotation: Up to 1 million (HTL/TTL)
Vibration / Shock resistance: 20 g / 150 g
Operating Temperature range: -40°C +85°C
Solid shaft: Ø 11, 14 mm
Hollow shaft :Ø 16, 17, 20, 25, 50mm special
All rounder for speed measurement
Solid shaft: max 14 mm with and without foot
Hollow shaft : 12mm,16mm & 17mm Conical.
Pulse per rotation: 1- 1 million
Temperature range: -25°C to 85°C…
All rounder for speed measurement
Shaft diameter: Ø 6, 8, 9.52, 10, 12 mm
Hollow shaft diameter: Ø 14, 15 mm.
Pulse per rotation: 1- 1 million
Temperature range: -40°C +100°C
Supply voltage: 5-30 VDC
