Inductive proximity sensors
Inductive proximity sensors
Heavy duty proximity switches specially designed to withstand harsh operating environment of steel and rolling mills. Proximity features include: high temperature electronics, resistance to emulsions, large sensing distance, Silicon/ Teflon cables with integrated conduit protection system.
Large sensing distance combined with high temperature electronics with integrated cable conduit system
Temperature: 100°C, 120°C
Sensing distance: 15-25 mm
Supply voltages: 10-55 VDC
Protection class: IP68
NO|NC
For aggressive emulsion environment, combined with large sensing distance & high temperature electronics
Temperature: 100°C, 120°C
Sensing distance: 19-25 mm
Supply voltages: 20-260 V AC/DC
Protection class: IP68
NO|NC
Large sensing distance combined with high temperature electronics
Temperature: till 100°C
Sensing distance: 15 – 25 mm
Supply voltages: 20-260 VAC/DC
Protection class: IP67
NO|NC

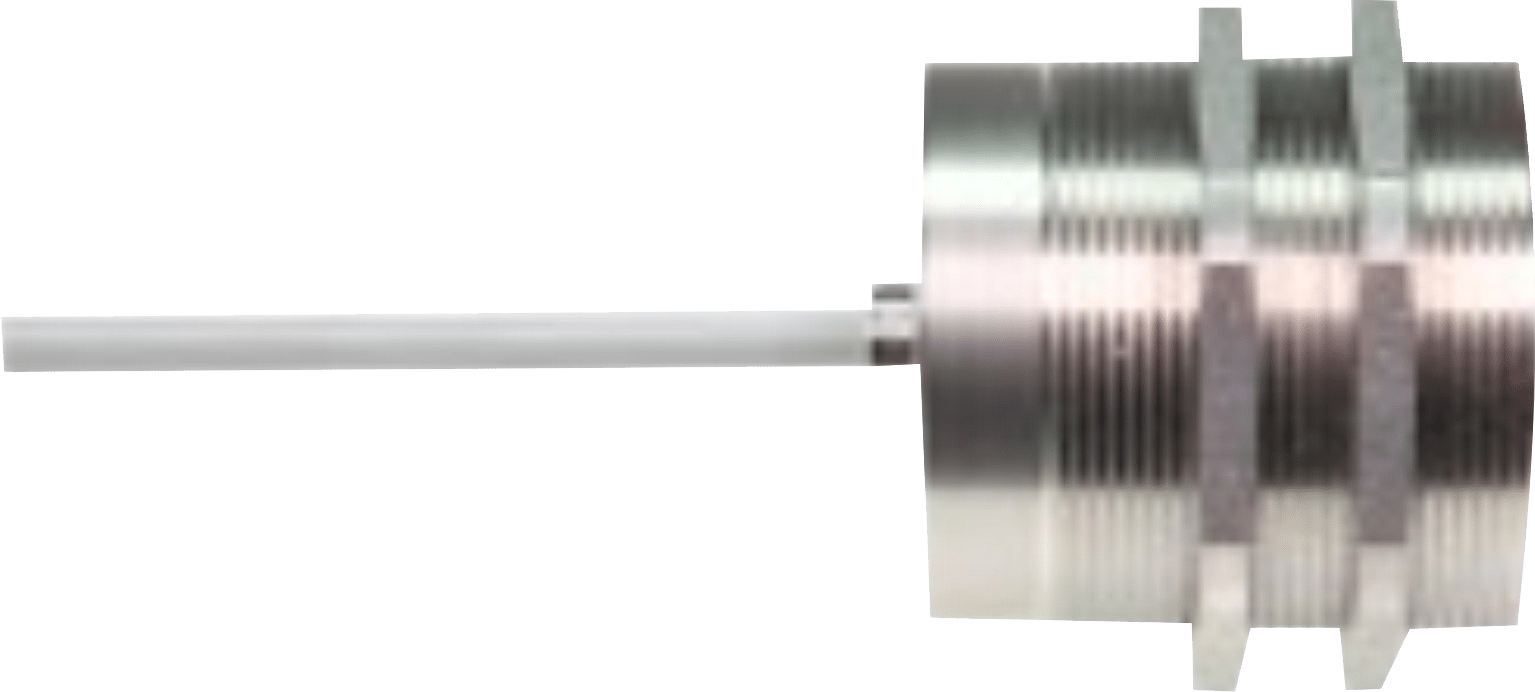

High temperature proximities electronics available in 150°C, 175°C, 230°C with option of electronics unit being away from heat zone
Wide operating temperature range: upto 230°C
Sensing distance: 2-50 mm
Supply voltages: 10-30 VDC
Protection class: IP66
NO|NC
Designed for increased durability for situations where high mechanical play is involved
Temperature: -25 to 100°C
Sensing distance: 50- 200 mm
Supply voltages: 20-260 VAC/DC
Protection class: IP67
NO|NC
Temperature: -25 to 70 °C
Sensing distance: 15 mm
Supply voltages: 10-55 VAC/DC
Protection class: IP68
NO|NC
