 Home > Products > Sensor Technology > IR Temperature Sensors > Thermal Cameras > Compact Industrial Autonomous Short-wavelength Infrared Camera

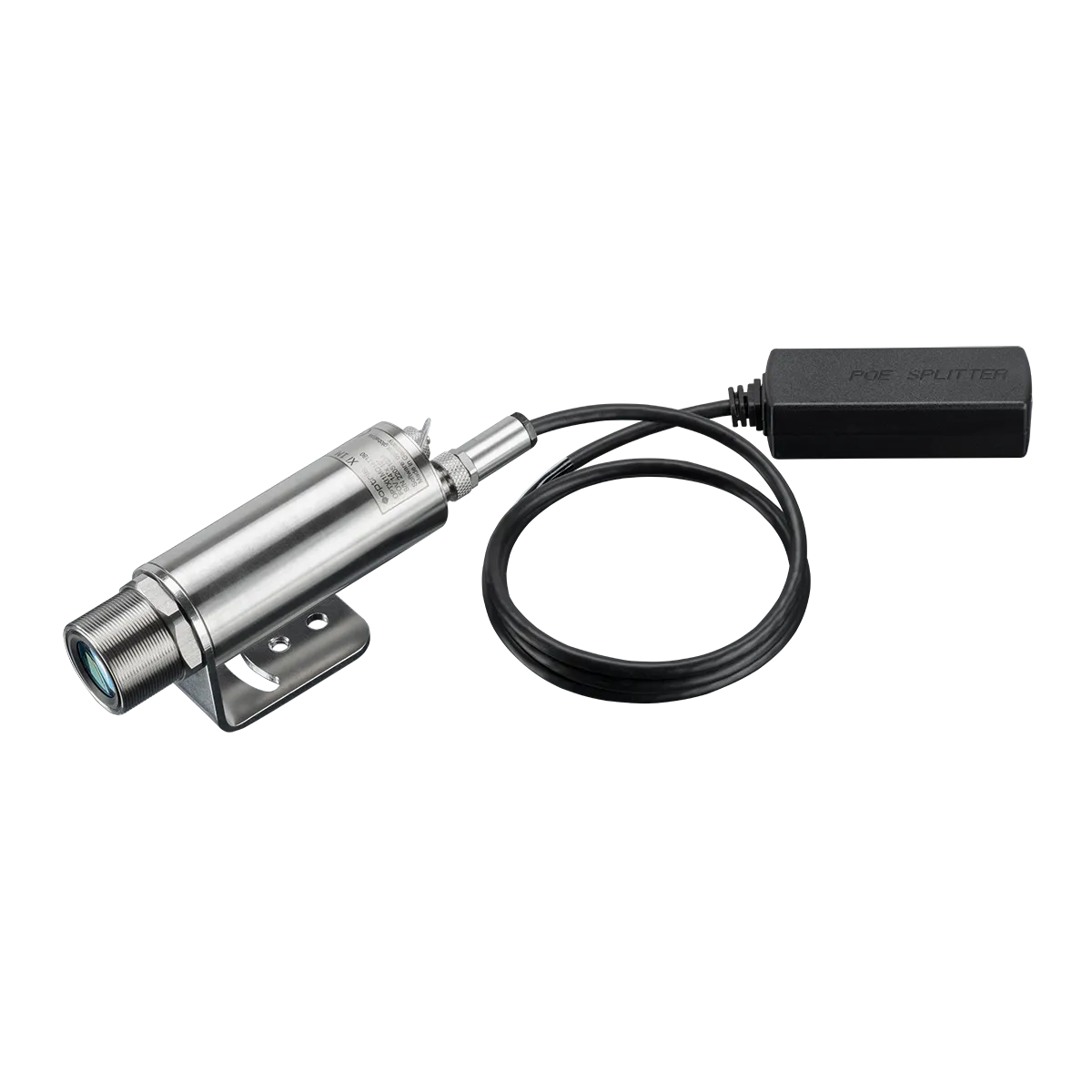

Compact Industrial Autonomous Short-Wavelength Infrared Camera

The Short-Wavelength Infrared Camera Offers Innovation, Affordability, And Precision.

Short-wavelength infrared camera delivers precise, non-contact thermal imaging for challenging objects, operating in the 0.85 – 1.1 μm range. It accurately measures surface temperatures of materials like steel, iron, brass, copper, and semiconductors, offering exceptional accuracy, wide temperature ranges, and customizable field-of-view options. Designed for industrial use, it ensures reliable performance, even for materials with low emissivity in the long-wave infrared range.

Specifications:

  • Temperature range: 450 to 1800 °C
  • Ambient temperature: 0 to 50°C
  • Motorized focus
  • Up to 9 Analog output: 0/4-20 mA
Signal Output

3x4-20 mA/ 0-10 V
Ethernet
Android
USB

Key Features:

  • Small, lightweight, and portable for easy integration.
  • Detects subtle temperature differences for precise measurements.
  • Waterproof and robust design for harsh environments.
  • Wide Temperature Range – Suitable for a variety of industrial applications.
  • Continuous monitoring for accurate temperature tracking.
  • Automatically detects and highlights critical hot spots for easy analysis.
  • Precisely measures the surface temperatures of hot metals, ceramics, and semiconductors.
  • Alerts you to critical temperature deviations in real-time with alarm output

Generic Application:

  • Forging
  • Metal forming process
  • Casting operations
  • Semiconductor industry
  • Fire Prevention
  • Continuous temperature monitoring
Signal Output

3x4-20 mA/ 0-10 V
Ethernet
Android
USB

FAQ on Compact Industrial Autonomous Short-Wavelength Infrared Camera.

Can the temperature measurement of a single pixel be trusted?

Due to the diffraction limits of infrared optics, both optical resolution and image quality are inherently restricted. Since the size of individual pixels is comparable to the infrared wavelength, users should ensure that the target is larger than the camera’s minimum field of view (MFOV) for accurate measurements.

Is DHCP supported by the short-wavelength infrared camera in Ethernet mode?

No, the camera requires a static IP address to be assigned.

Can this short-wavelength infrared camera be used for metals?

Yes, the Xi1M is specifically designed and optimized for capturing thermal images of hot metal objects.

Can the short-wavelength infrared camera function independently without being connected to a computer?

The short-wavelength infrared camera can independently calculate temperature without requiring a computer. It can transmit temperature data via USB or Ethernet interfaces, or output it through the process interface. Additionally, fieldbus communication is available.
