Speed feedback for auxiliary drives

Key Features

  • Speed measurement and monitoring
  • High Shock and Vibration Resistance
  • Dynamic feed-back control
  • Robust and long lasting in harsh environment such as wet areas in rolling mill or sea air

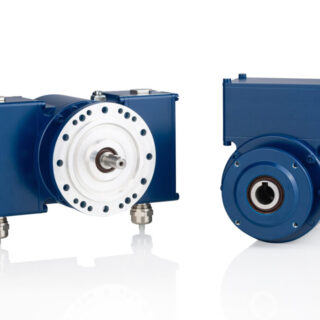

  • Solid shaft, hollow shaft, combinations
  • Pulse- 1024, 2048. Other pulses in request
  • Optional feature: Second incremental output, FOC transmitter, additional overspeed switch



Want to check if this is the right product for you?

Download Application Questionnaire

Specification

Solid shaft

max. 11 mm (foot option available)

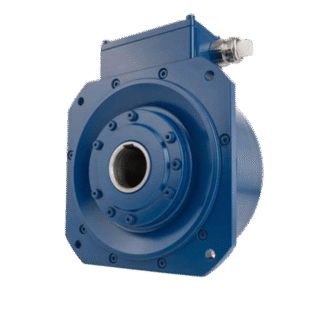

Hollow shaft

12mm,16mm & 17mm Conical.

Pulse per rotation

1- 1 million

Temperature range

-25 °C to 85 °C

Supply voltage

12-30 VDC

Output signals

0°, 90° and inverted signals, Reference pulse (N) without SIL / PL, with inverted signal

Signal Output

0°, 90°, N, Status (& inverted signal)

Generic applications of incremental encoder

  • Main motor slab sizing press
  • Motor roller table finishing mill
  • In motor coble pusher
  • Motor roller table cooling
  • Speed measurement in measuring roll and flatness measuring roll
  • In the idler roll of 20 roll mill
  • Deflection motors, roller table motors, auxiliary drives, processing and cutting lines
  • Crane-hoist systems, gantry, trolley, cable reel
  • Mining- conveyor belts, belt stations, hoist systems
Specification

Solid shaft: max 14 mm with and without foot
hollow shaft : 12mm,16mm & 17mm Conical.
Pulse per rotation: 1- 1 million
Temperature range: -25 C to 85 C
Supply voltage 12-30 VDC
Output signals 0°, 90° and inverted signals,
Reference pulse (N) without SIL / PL, with inverted signal
Signal Output : PPR (Pulse Per Revolution)
