High rejection rate due to inaccurate temperature. Due to moving process difficult define measuring point, where the temperature has to measured. Thermal camera provides multiple ROIs (areas) for full profile measurement. Auto HOT SPOT tracker for max process temperature.
Profile (Multi-point) Temperature on Induction Heating
Pilger mill in tube rolling mills - hot and cold pipe detection
- Heat treatment process : Induction
- Heating Special wavelength camera to minimize the influence of emissivity adjustment
- No alignment required even for moving job process
- Wide temperature range : 450 to 1800°C
- Analog outputs (4-20ma) for multiple region of interest
Challenges
- High rejection rate as not accurate temperature
- Due to moving process can not define measuring point, where the temperature has to measured.
- Oxidation / scales reduces real temperature
- Existing ratio pyrometer not sufficient for the process
Solution
- Special spectral range applicable for heat treatment process

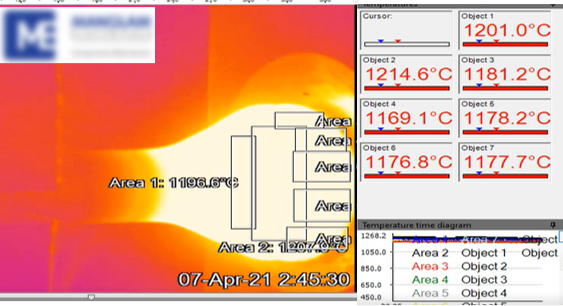

- Multiple ROIs (areas) for full profile measurement
- Auto HOT SPOT tracker for max process temperature
- Water cool jacket for ambient temperature 315°C
- Single image on screen (left and right) from two camera

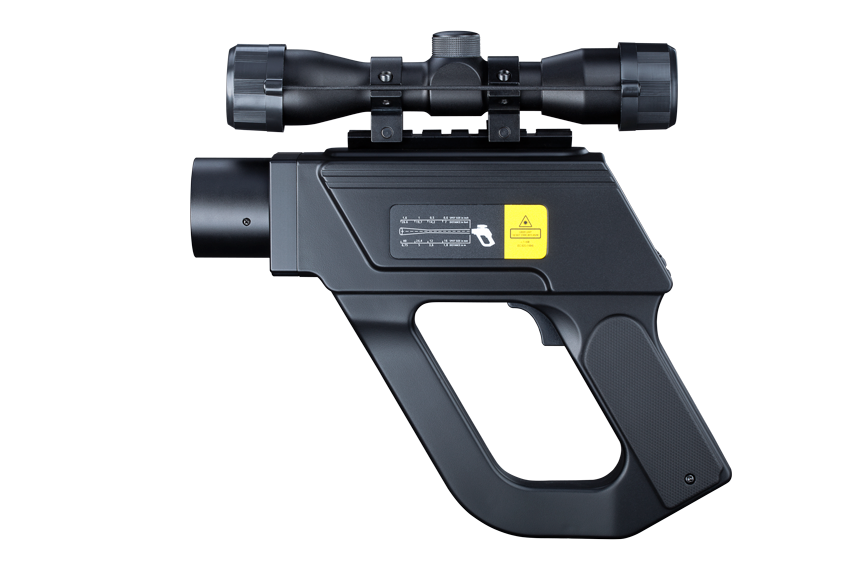

Products and Accessories
Other Solutions for Molten Metal
Case Study Number
- TP3
Challenge
- The increasing flexibility of production lines requires a high adaptability of sensors. Continually changing object geometries, different temperatures and very high radiation or surrounding temperatures are no rarity.

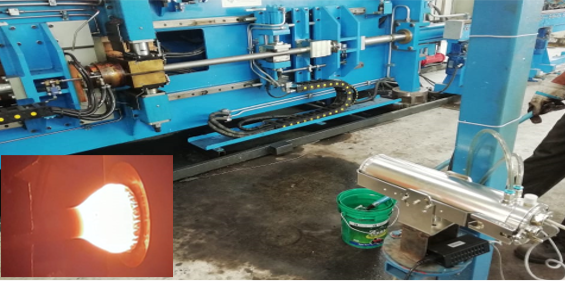

- In a pilger mill those rough conditions can be found, among others in the production of seemless steel pipes. The raw steel blocks, each weighing a few tons are heated up first in a round oven at a temperature of 1300 °C.
- After descaling of the surface, the steel block is prepunched in a hole press with a strength from a converted 2000 t. In the next sloping rolling mill the growing pipe rotates between two rollers that are positioned at an angle to each other. The punching is widened to the size of the mandrel diameter.
Previous solution / Competitor product
- N/A
Solution
- The sensor that was installed at this application is the HMD OKA 2038.38 G with tube OL 19.
- The signal of the infrared sensors controls the movement of centering device and abutment. The point of view is restricted by the tube and prevents disturbances by steam in the cooling phase.
- An optimum adaptation to the operating conditions is given due to the adjustable response temperature. The HMD with self-learning response temperature (Auto-Teach function) is suited to continually changing conditions.
- The compact sensor with a stainless steel housing can withstand surrounding temperatures of up to 75° C. The use of a cooling jacket raises this up to 200° C.
- Alternatively sensors with fibre optic cables are available which permit an application at ambient temperatures up to 600° C without cooling.
Customer Benefits
- Maintenance-free
- High temperature stability
- Recognition of hot objects at big distances
- Self adjustment with Auto-Teach or step switch for the response temperature
Product Part number
- OKA 2038.38 G
Brand
- Proxitron
Accessories
- Piros swivel stand HM2
- Tube OL 19
- Pilot light unit (for alignment) DAK 308 + OL 26
- Different cable lengths (e.g. 15 m)
Customer Testimonial
compared to previous solution or competition
