Foundry: Cast Iron and Pouring of Molten Metal
Handheld Portable Infrared Sensor provides accurate temperature measurement
Challenges
To measure temperature during the time of pouring
Reduce the tip consumption costs
Portable temperature measurement device for tapping and pouring process
Error in measurement for non-contact IR sensor due emissivity adjustment
Solution

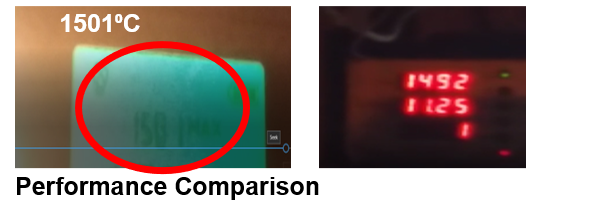

Handheld Pyrometer provides spectral range for molten metal
Wide temp range 1000 to 2000°C
Dual Laser for target alignment
2000 values can be transferred to PC via USBHandheld
Products and Accessories
Features
- Short measurement wavelength of 0.5μm
- Wide temperature range : 1000 to 2000°C
- Dual Laser spot for target alignment and LCD display
- Data storage up to 2000 measurement values and USB connect to PC
Other Solutions for Molten Metal
Case Study Number
- TP3
Challenge
- The increasing flexibility of production lines requires a high adaptability of sensors. Continually changing object geometries, different temperatures and very high radiation or surrounding temperatures are no rarity.
- In a pilger mill those rough conditions can be found, among others in the production of seemless steel pipes. The raw steel blocks, each weighing a few tons are heated up first in a round oven at a temperature of 1300 °C.
- After descaling of the surface, the steel block is prepunched in a hole press with a strength from a converted 2000 t. In the next sloping rolling mill the growing pipe rotates between two rollers that are positioned at an angle to each other. The punching is widened to the size of the mandrel diameter.
Previous solution / Competitor product
- N/A
Solution
- The sensor that was installed at this application is the HMD OKA 2038.38 G with tube OL 19.
- The signal of the infrared sensors controls the movement of centering device and abutment. The point of view is restricted by the tube and prevents disturbances by steam in the cooling phase.
- An optimum adaptation to the operating conditions is given due to the adjustable response temperature. The HMD with self-learning response temperature (Auto-Teach function) is suited to continually changing conditions.
- The compact sensor with a stainless steel housing can withstand surrounding temperatures of up to 75° C. The use of a cooling jacket raises this up to 200° C.
- Alternatively sensors with fibre optic cables are available which permit an application at ambient temperatures up to 600° C without cooling.
Customer Benefits
- Maintenance-free
- High temperature stability
- Recognition of hot objects at big distances
- Self adjustment with Auto-Teach or step switch for the response temperature
Product Part number
- OKA 2038.38 G
Brand
- Proxitron
Accessories
- Piros swivel stand HM2
- Tube OL 19
- Pilot light unit (for alignment) DAK 308 + OL 26
- Different cable lengths (e.g. 15 m)
