U-ONE Generation I – basic unit
Key Features
- U-ONE Generation I Basic Unit for direct shaft mounting
- Measures Speed & Position with high reliability
- Solid & Hollow Shaft Options – Ø14 mm (solid) and Ø20 mm (hollow)
- Dual Fiber Optic Signal Transmission for interference-free communication
- IP66 Protection with operating temperatures from -25°C to +85°C
- Optional SIL 2 / PL d Certification for functional safety applications
Want to check if this is the right product for you?
Download Application QuestionnaireSpecifications
Supply voltage
12-30 VDC
Signal amplitude
HTL or TTL
Resolution
Multiturn 12 bit (4096 rotations)
Singleturn 12 bit (4096 steps per rotation)
Signal Output/Interfaces
Via function modules in the switchboard
Type of construction
- Solid shaft (B5, B35): Ø 11 mm, Ø 14 mm with feather key
- Hollow shaft: Ø 20 mm with keyway
Operating Temperature range
-25 °C to +85 °C
Degree of protection
up to IP66
Device options / Function
Modularly extendable (compact combination of different electronic function modules)
Number of pulses
Up to 65536
Output signals
0° and 90° track, reference pulse, check output and inverted signals
Maximum Speed / Frequency
4000 rpm / max. 200 kHz (HTL, TTL), max. 1 MHz (CLK)
Solid shaft
Ø 14 mm with feather key
Hollow shaft
Ø 20 mm with keyway
Certificates / Approvals
Safety certified: SIL 2 / PL d for UOM(HJ) 41L
UL/CSA
Related Products
-
Read moreKey Features

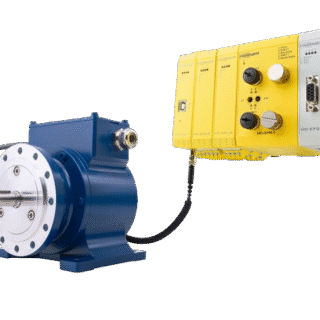

- U-ONE Generation II (LWL) modular encoder system for position and speed monitoring
