DSL Condition based Monitoring Inspection System on Cranes
Smart Radar Sensor for width measurement Hot Rolling Mills
Hot spot in DSL lines is in an early indication of unequal current distribution
For uninterrupted service and safety of critical equipment such as hot metal cranes, CDQ cranes, coil cranes, slab cranes, etc. the DSL inspection system is now the becoming the industry standard to ensure higher safety levels
Plug and Play: Easy to install
- 7 digital alarm outputs for each DSL line
- Auto hotspot detector to scan the entire field of view and identify the overheated DS Line.
- Real time temperature measurement of multiple region of interest i.e. each DSL line.
- Automatic snapshots on breach of the alarm conditions
- Watchdog functionality for the thermal analysis software to restart after power cycle of the workstation
- Failsafe alarm activated if software crashes or networking cable connection are lost.
Suggested Products & Acessories
Thermal Camera

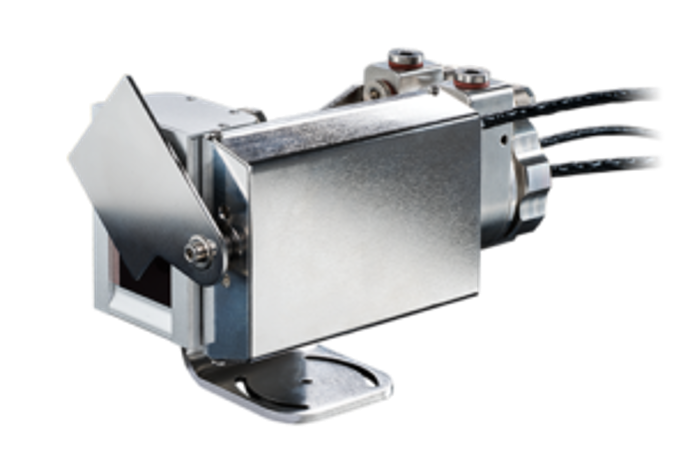

Shutter mechanism in front of camera optics to reduce dust deposition

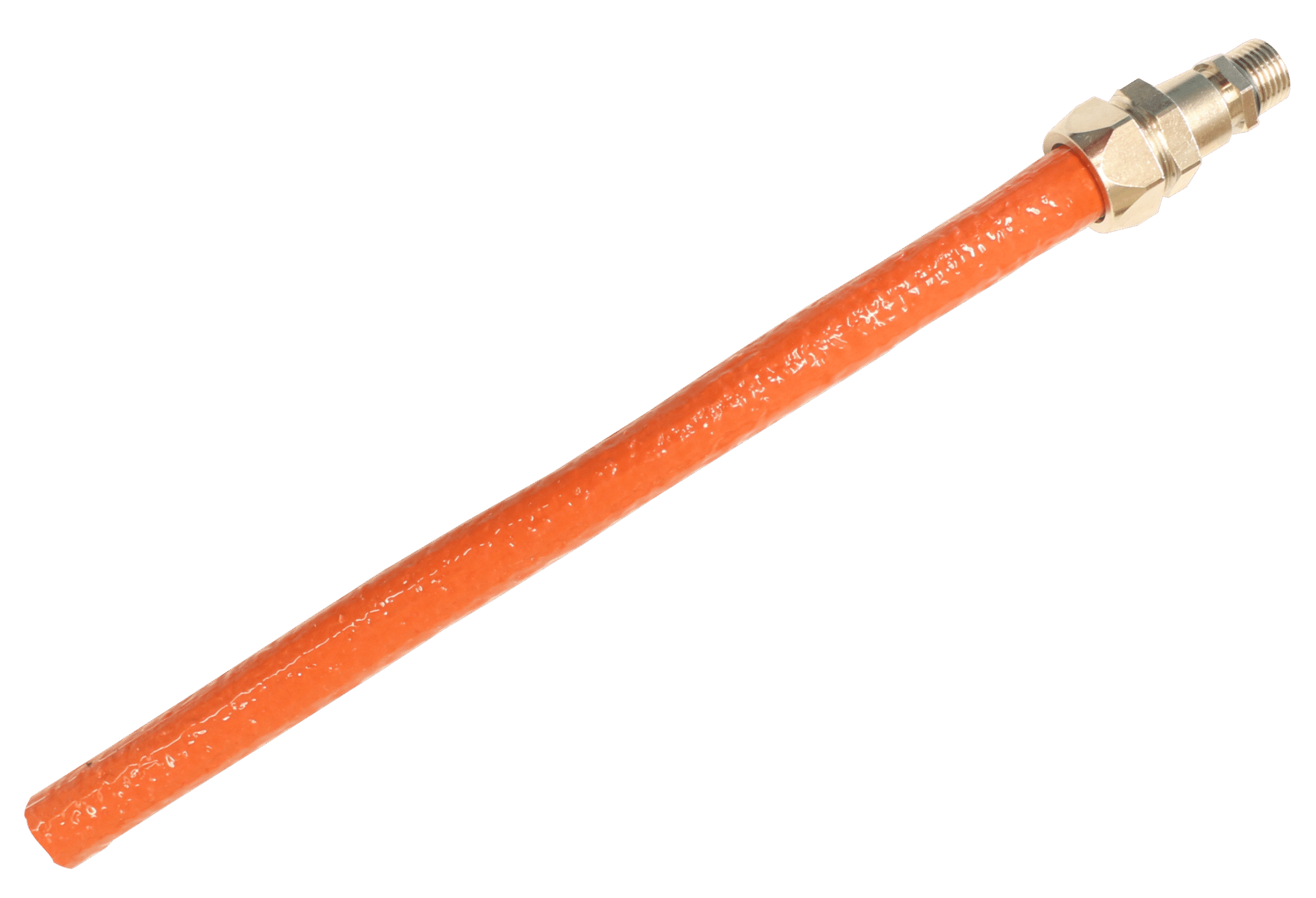

180C Hight temperature cable for 10mtrs from camera.

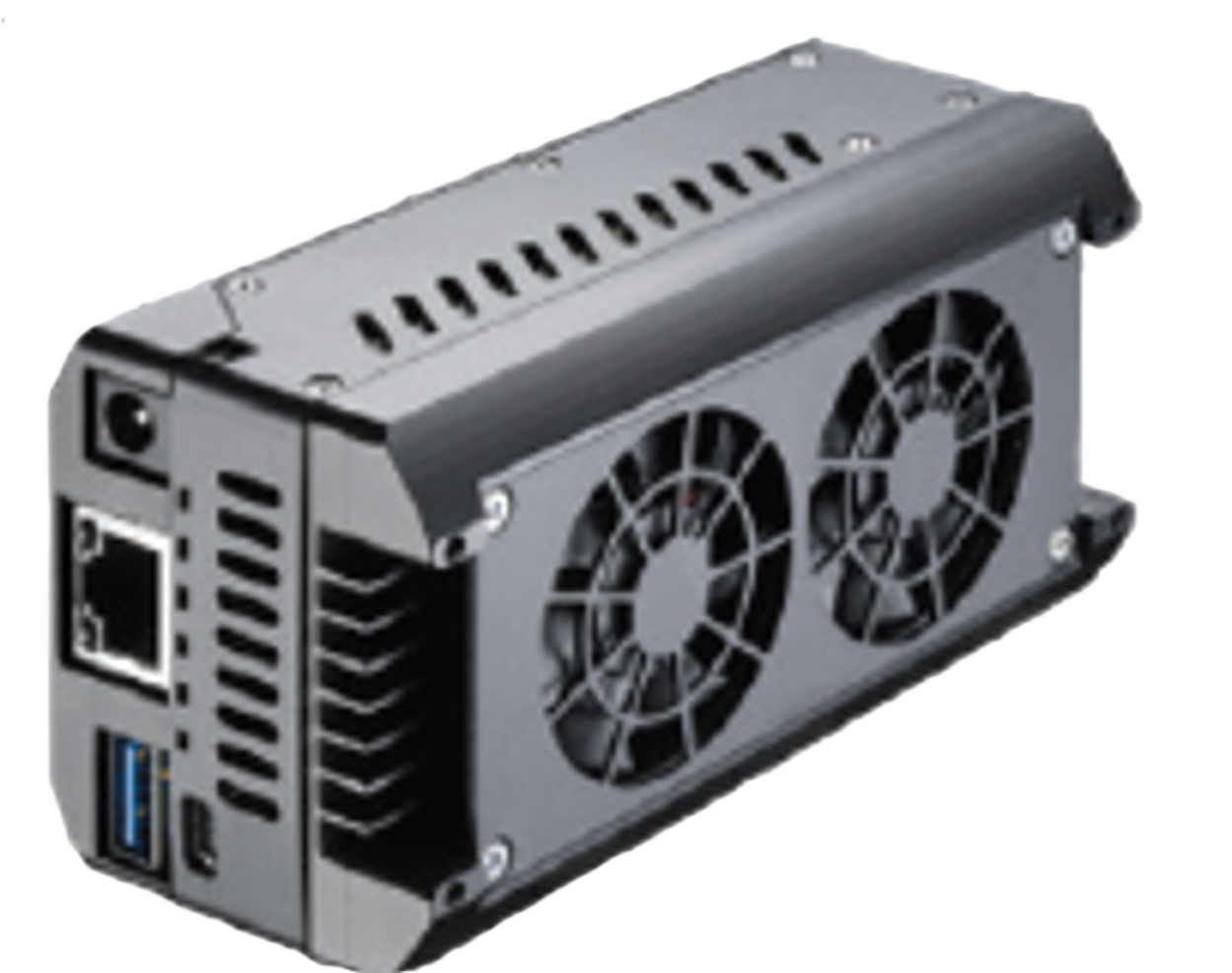

Miniature size workstation (113 x 57 x 47 mm) boxed in IP65 housing.

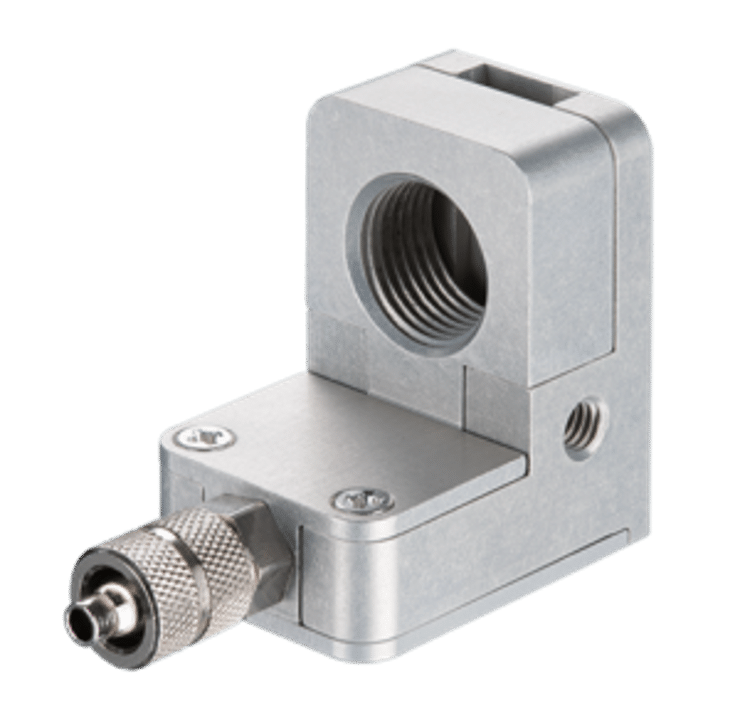

Laminar air purge to remove dust from the optics
