Visualizing Slab Heat in Tunnel Furnace with Thermal Camera
Smart Radar Sensor for width measurement Hot Rolling Mills
Challenge
Needed to measure slab surface temperature at tunnel furnace entry and exit.
Solution

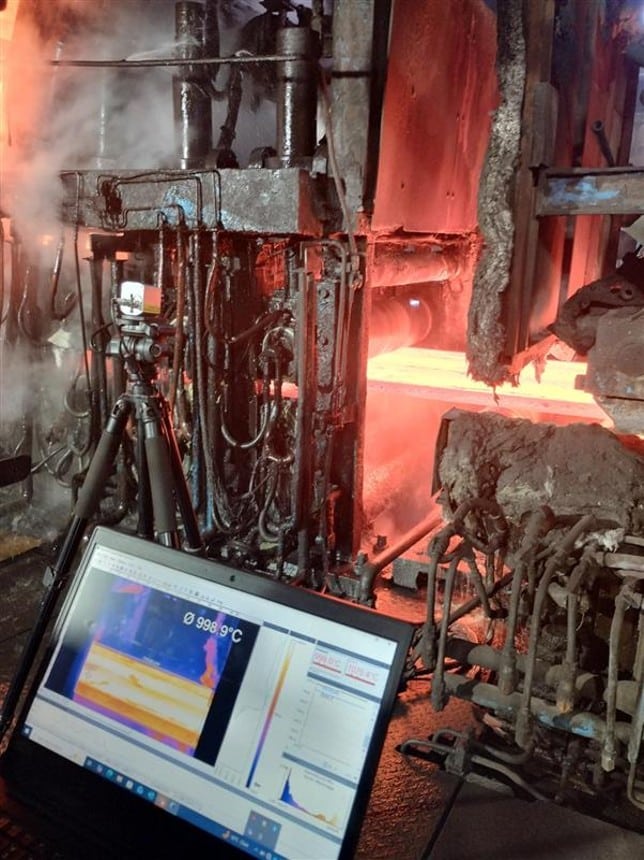

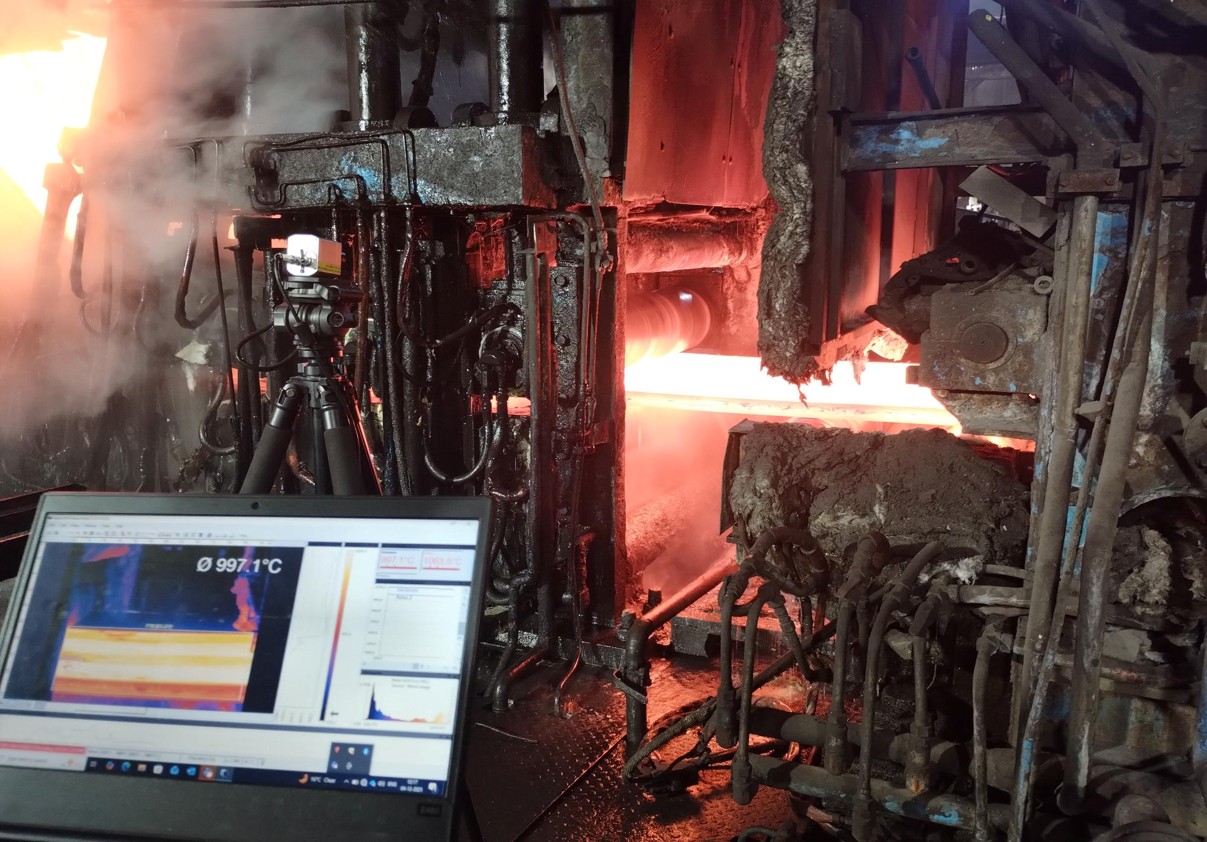

Employed the short- wavelength thermal camera at tunnel furnace entry and exit

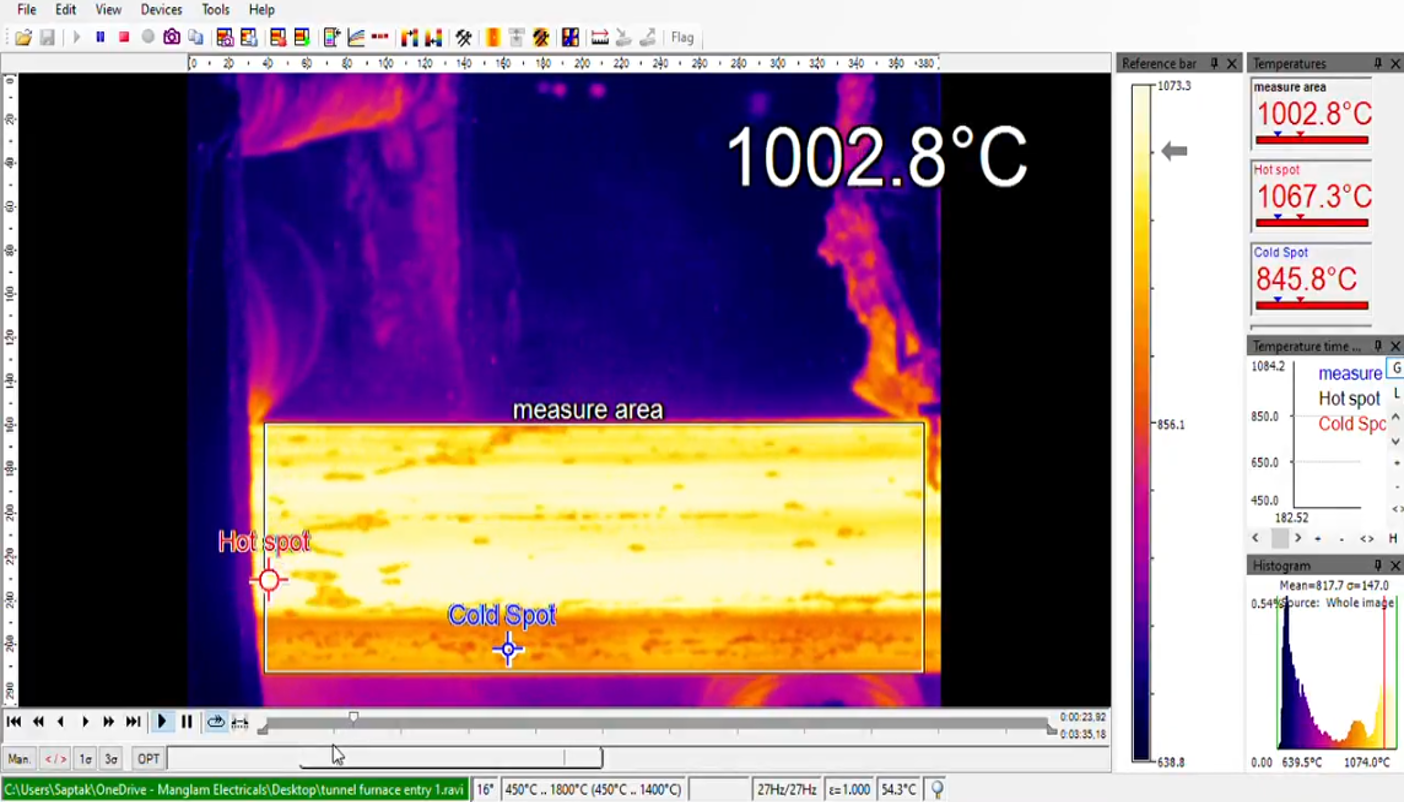

- Captures accurate measurement data for precise surface temperature analysis of slab
- Non‑contact sensingin harsh conditions
- Real‑time data output enabling effective process monitoring and control
- Continuous full slab coverage using line scanning function
Gives multiple output options
Specifications
- Temperature range:450°C to 1800°C
- Analog o/p : 0/4 – 20 mA
