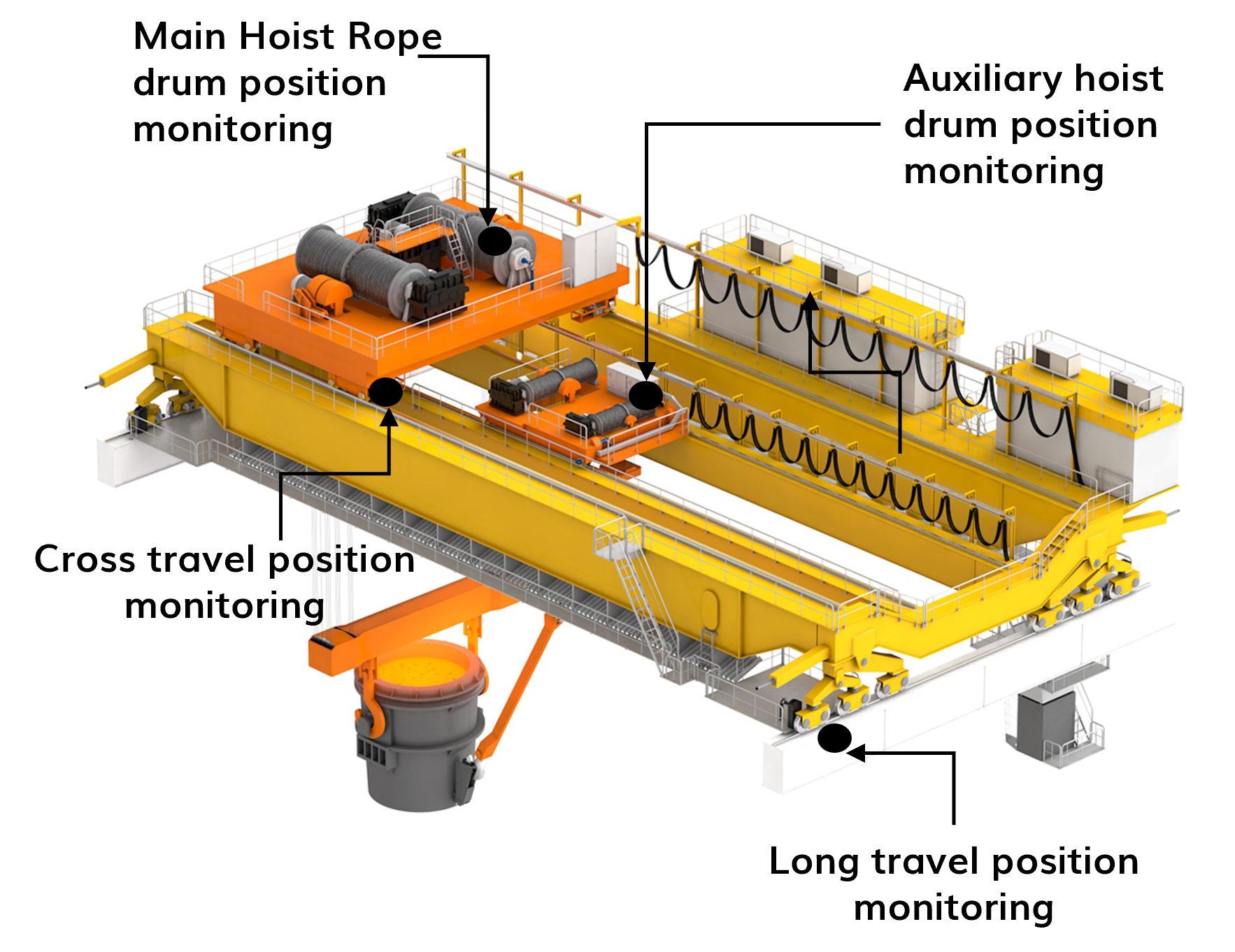

One Switch. Four Solutions. Precision Positioning Across Every Crane Motion.
Electronic Position Switch
Challenges
Conventional RJLS/cam limit switches in hot metal cranes caused inaccurate positioning, corrosion issues, and frequent maintenance
Application Scope
By replacing the mechanical switches with electronic position switches, a 1:1 retrofit was achieved.
Electronic Position Switch Offers
- Greater accuracy 0.044 ° ( 360 °/ 8192)
- Multiple positions switch (up to 15) in one compact device
- Switching contact, and 4-20 mA output taken in single unit.
- Reduced breakdown and maintenance time
Suggested Products

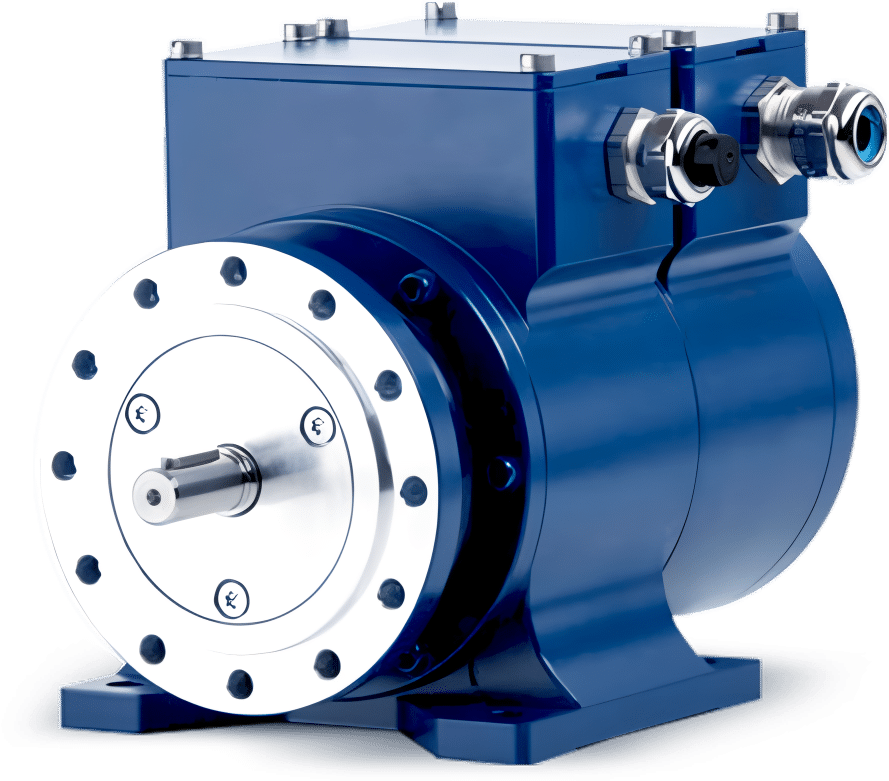

Electronic Position Switch
