Real Time Thermal Imaging during Electronic beam welding
Smart Radar Sensor for width measurement Hot Rolling Mills
Challenge
- Thermal profiling during electronic beam welding on metal
Solution
- During the Electronic beam welding the whole powerof the beam goes into the metal and generates heat.
- There is no laser light which can be reflected andtherefore no filter is needed.

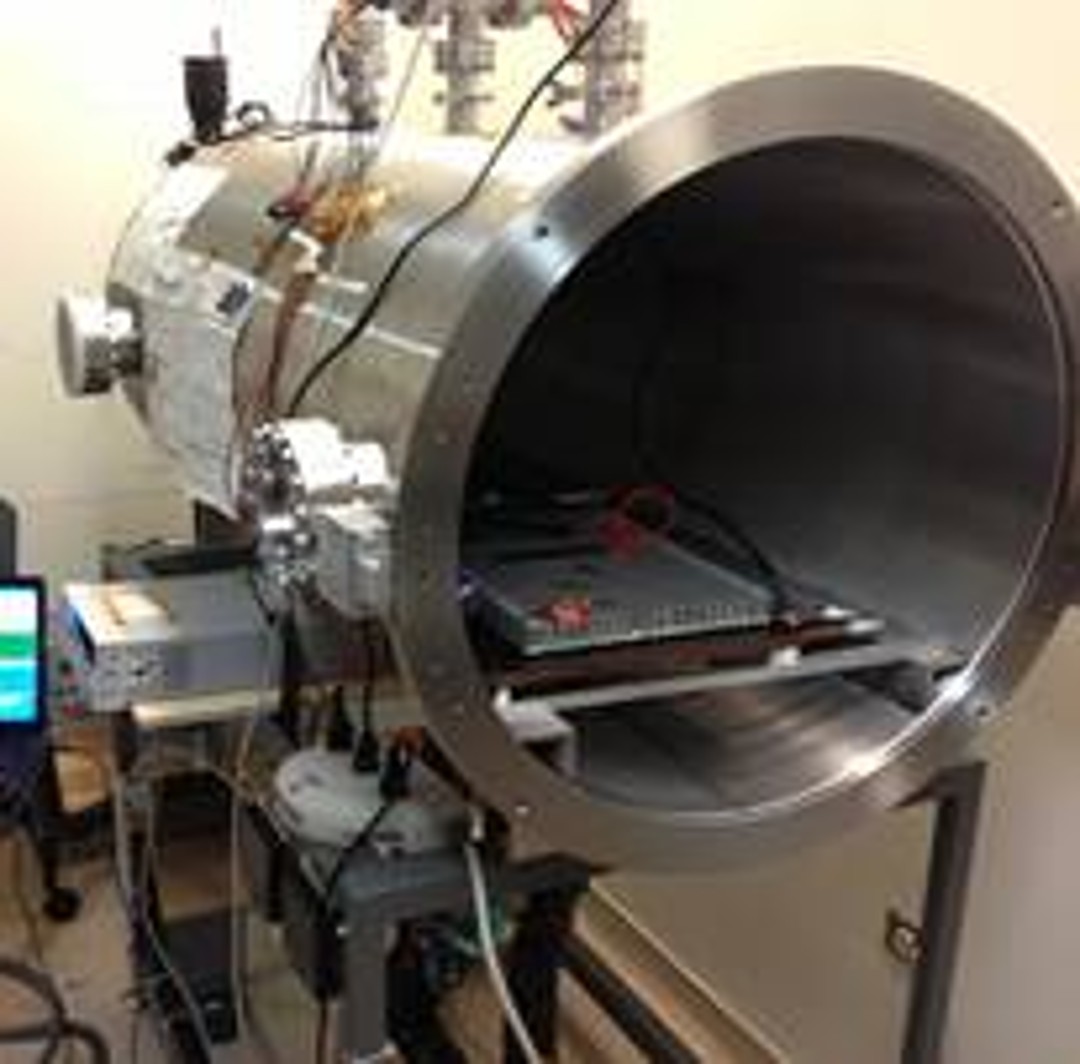

- Thermal camera is mounted directly on the vacuumchamber, looking through the vacuum window.
- For high ambient temperature of 70 °C coolingjacket can be used
Specifications
- High dynamic CMOS detector with up to 764 x 480 pixels resolution
- Wide measurement ranges from 450 °C to 1800 °C without sub-ranges
- Up to 1 kHz frame rate for fast processes
- Real-time analog output with 1 ms response time
