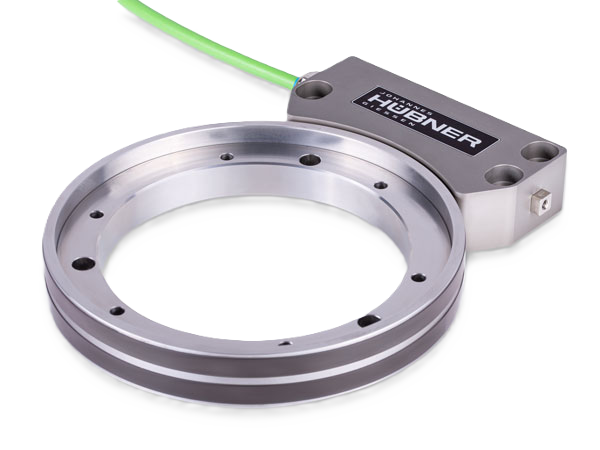

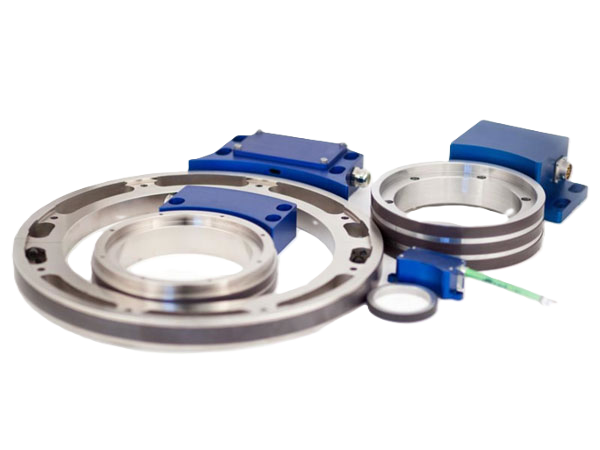

Magnetic Bearingless
Key Features
- Contact-free and bearing-less technology meaning no mechanical wear in most demanding applications
- Designed for harshest conditions resulting from heavy loads
- such as mechanical shock, vibration, extreme temperature, dust, dirt, fluids and chips.
- Only solution for extremely confined spaces, no free shaft end and large shaft diameters up to 1500 mm
- Split pulse wheel – ideal for retrofit projects
- Tailor-made system solutions
- Bearingless, doing position and speed measurement
- Protection covers made of stainless steel or carbon fiber reinforced plastic (CFRP)
Want to check if this is the right product for you?
Download Application QuestionnaireSpecifications
Supply voltage
12-30 VDC
Temperature range
-40°C to 100°C
Hollow shaft
12 mm to >1500 mm diameter
Pulse rates
32 to 100000 PPR
Degree of protection
IP66 to IP68
Output signals
0° and 90° track, reference pulse, check output and inverted signals
Electrical Connections
Terminal Box, fixed connection cable, Burndy Plug, M12 ad M23 Plug, FOC connection.
Application areas
Roll stands, motors on excavators on open cast mining, tandem motors
Signal Output
HTL
TTL
Generic applications
- Installed in the trolley or coil car entrance of down coiler
- For motors on excavators in open cast mining.
- Determines exact position of shaft in automatic crane system
- Used for tandem motors as well as water and gas turbines.
